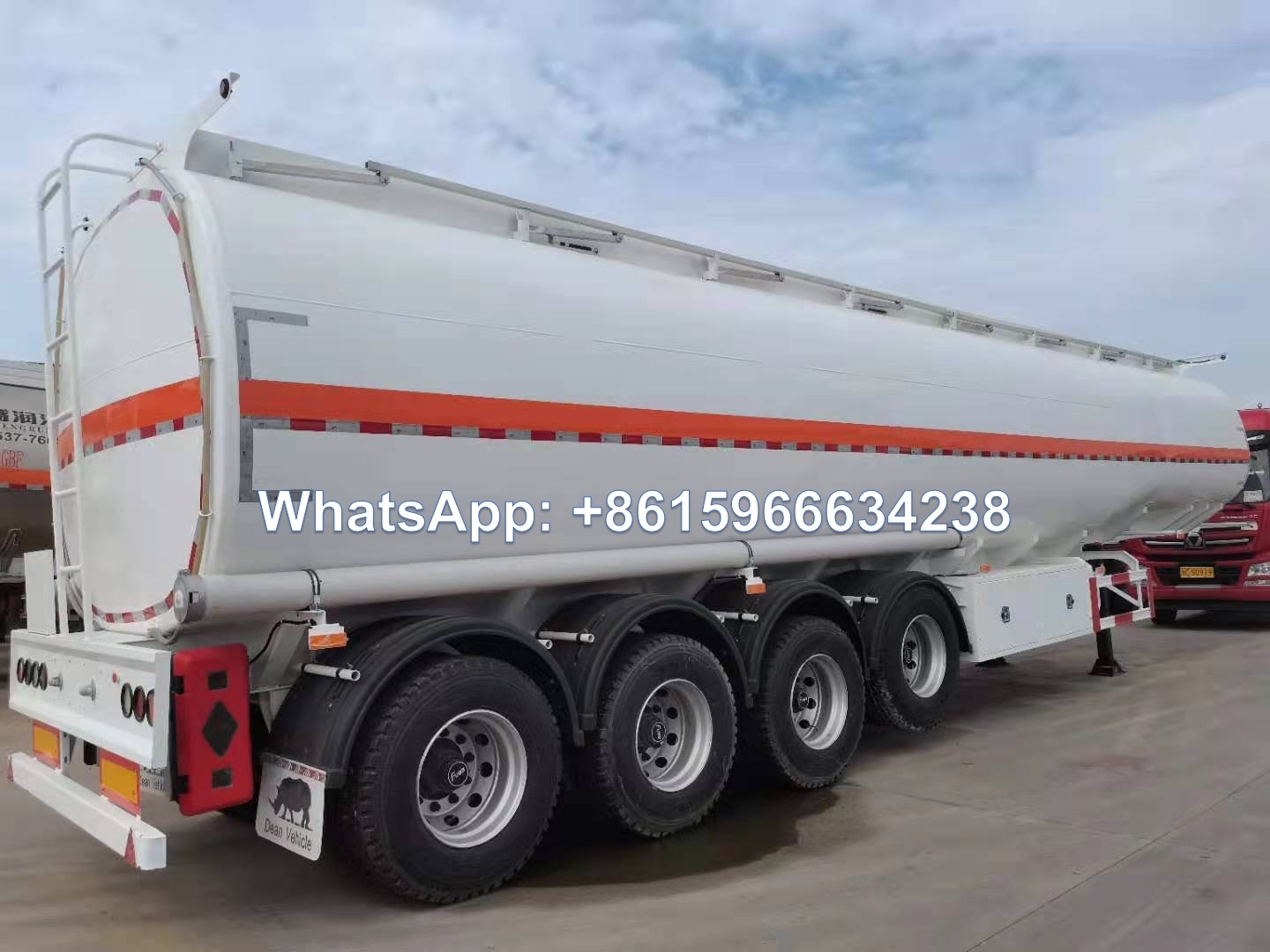

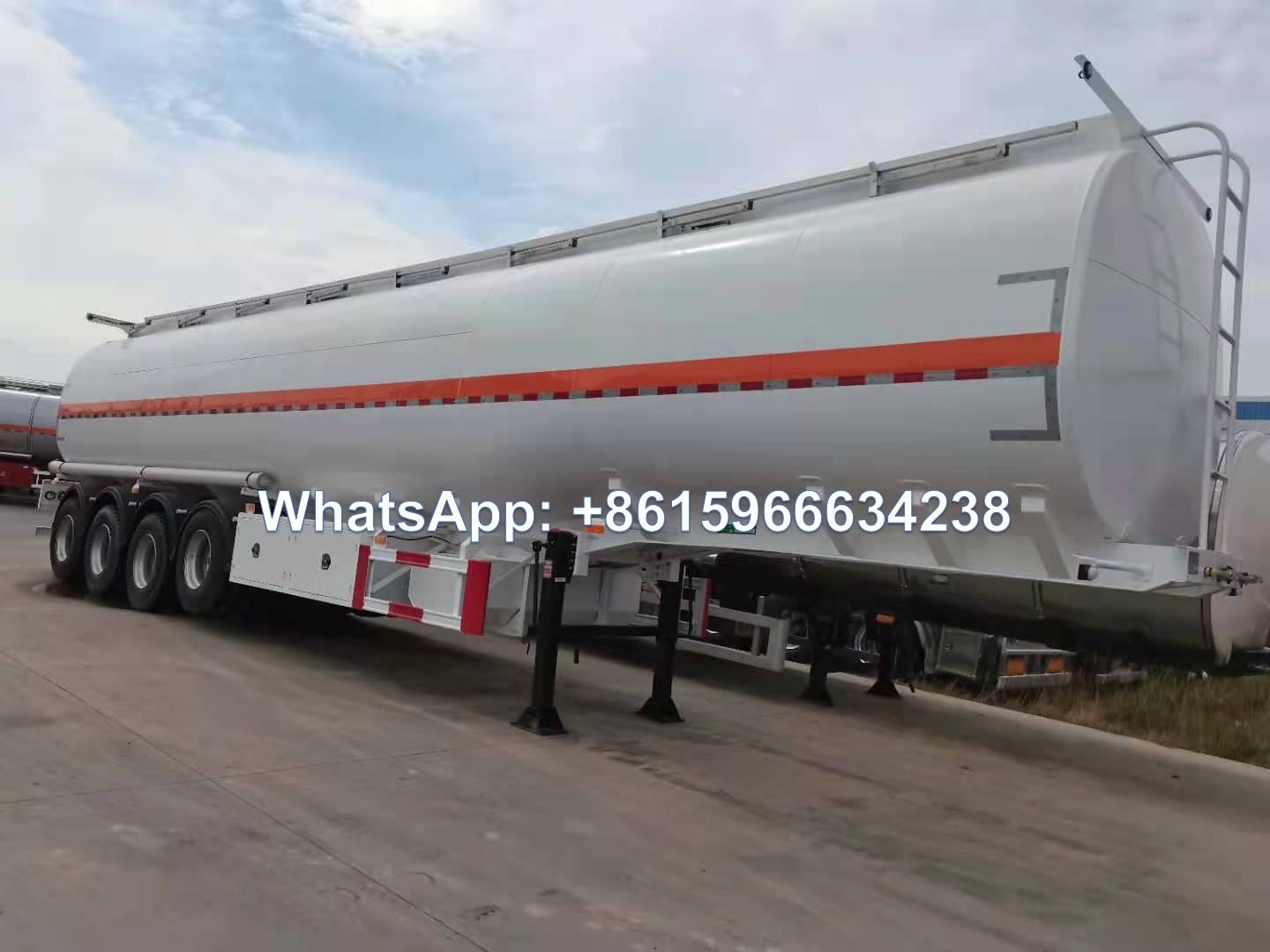

Sinotruk high quality 4 axle Fuel Tanker Trailers 50000Liters sale

Material: carbon Steel
Size: 12500x2500x3800
Max Payload: 45tons
Place of Origin: Shandong, China
Suspension: Mechanical Suspension
Function: Transport Oil
Condition: Brand-new
Brake System: 6 Double-Chamber, with ABS system
Axle Brand: 13TON Axle
$20000.00
Description

Sinotruk high quality 4 axle Fuel Tanker Trailers 50000Liters sale


Dimension and Weight

Overall Dimension(mm)

12500x2500x3800mm

Wheelbase

7,500mm+1,310mm+1,310mm

Payload

40,000kg

Tare weight

10,000kg

G.V.W.R.

50,000kg

Function

transport Fuel, Oil, Diesel

Tank

Volume

50000L

Thickness(mm)

Material Q235 carbon steel

Tank body and separate compartment plate:  5mm

Dish end plate:  6mm

Welding standard

All welding are to be done by qualified welder per applicable national standard

Compartment

5 compartments ( 5*9000L )

Manhole cover

5 units Safety manhole with breath valve, Aluminum, diameter 500mm.

Discharge valve

5 units  4 Inch

Bottom valve

5 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand

Discharge pipe

5 seamless steel tube, 6m

Tanker body test

Hydrostatic test to 5 psi (35 Kpa) on each compartment

Running System

Axle

 FUWA brand, 4 Axles, 13ton

Axle Number

4

Tire

12R22.5, 16 pcs. Taitong brand

Rim

9.0*22.5 steel disc wheel, 10 holes ISO, 16 pcs

Suspension system

3 axle Mechanical Suspension and one axle air suspension lifting

Steel Spring

10/10/10 leaf spring with 90mm(W) *13mm(thickness)

Electrical System

Chinese standard 24V lighting system

Brake system:

Dual line pneumatic brake, SAE hose and connector,no ABS

Brake air chamber

6 units T30/30 spring brake chambers

Emergency relay valve

Wabco relay valve

Tire Type and quantity

1200R22.5   12units

Traction/King Pin

2 and 3.5 removable Kingpin, bolted in type 500mm from the front face of the front bolster

Landing Gear

FUWA brand






1-It has flat type, concave beams type and tyre appear type.The front longitudinal adopts flat type or goose neck type. Its chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.



2-Low platform is chassis makes a stable transportation. It is suitable for transport different kinds of engineering equipment,large equipment and steel structures.



3-Using three axle balanced type, two axles balanced type or rigid axle suspension.Putting the balanced between the front and rear plate spring and make the same change of the front and rear spring comber and the same load condition



Related Products

Our major products are:container semi trailer,dump trailer,tanker trailer,bulk cement semi trailer,car carrier semi trailer,flatbed semi trailer ,lowbed semi trailer,side wall semi trailer ,store house bar semi trailer and so on.
