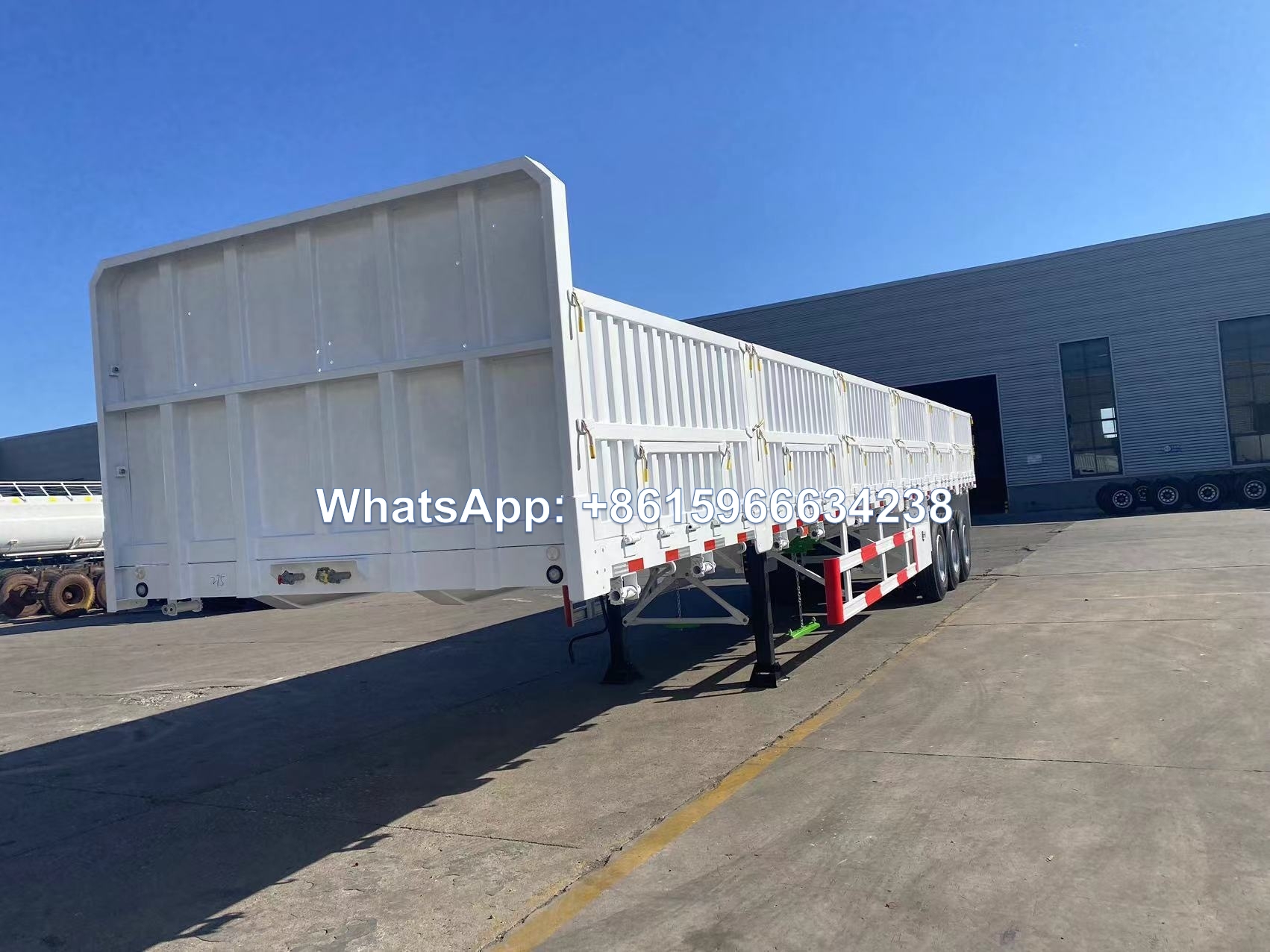

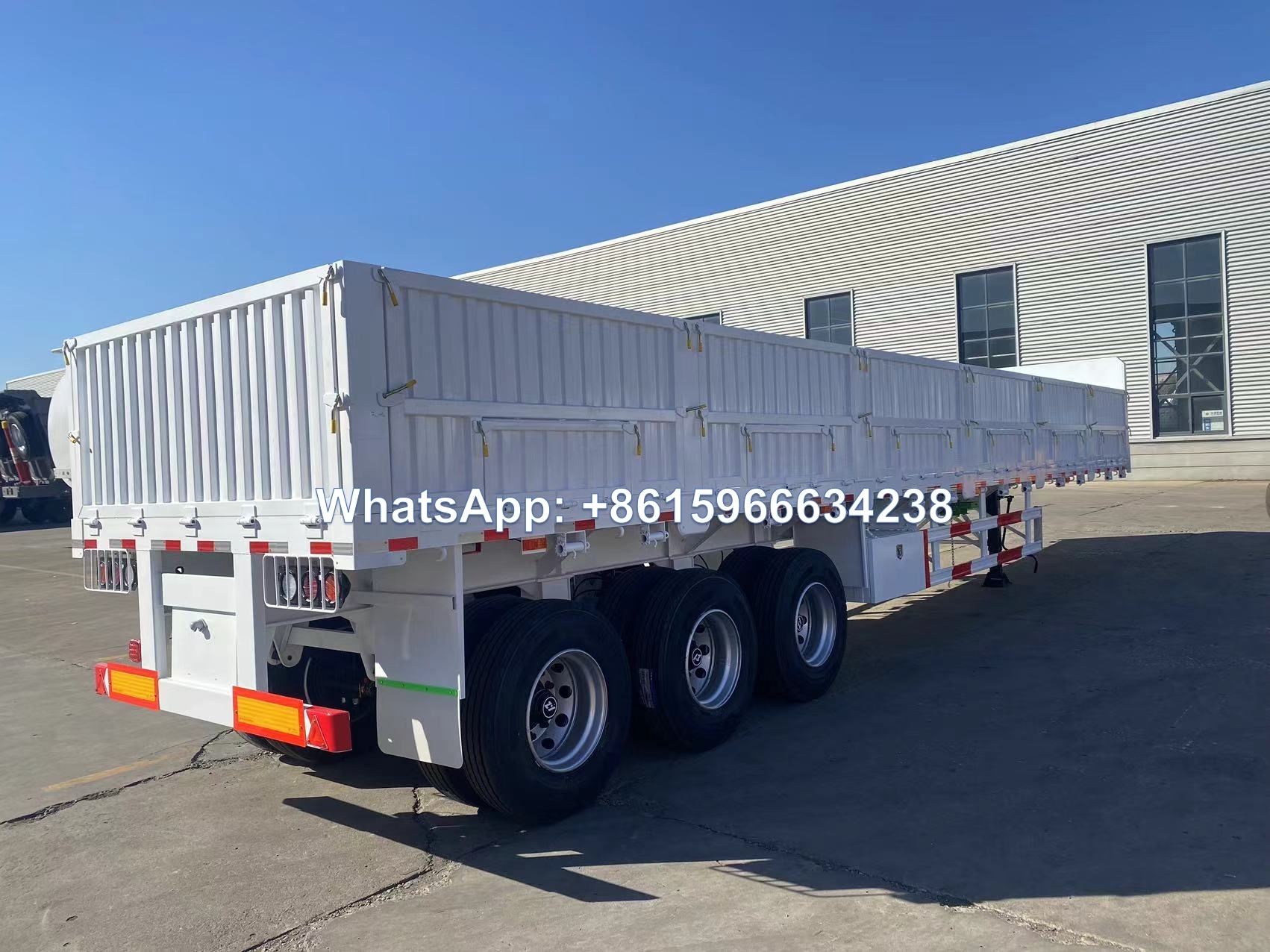

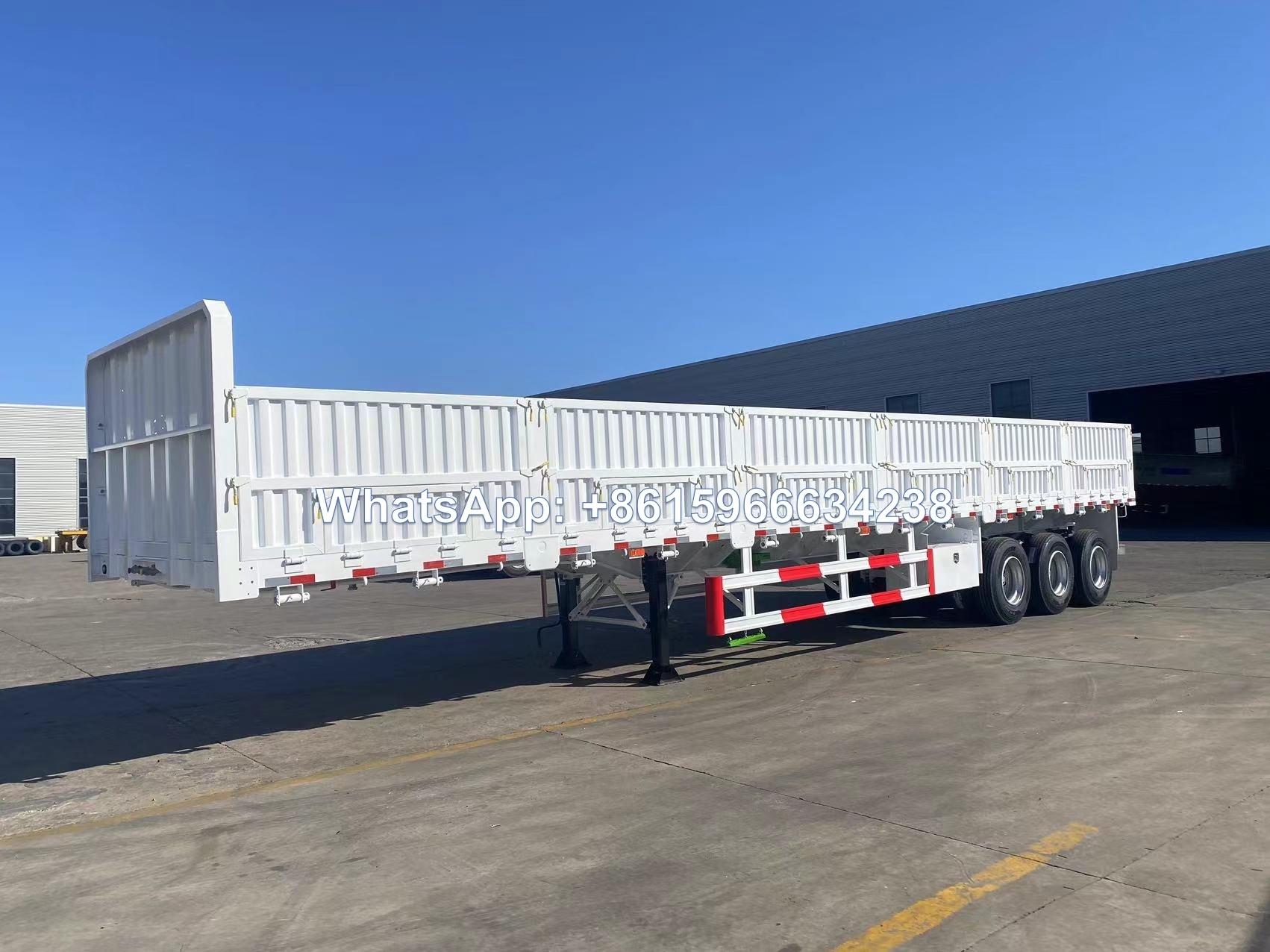

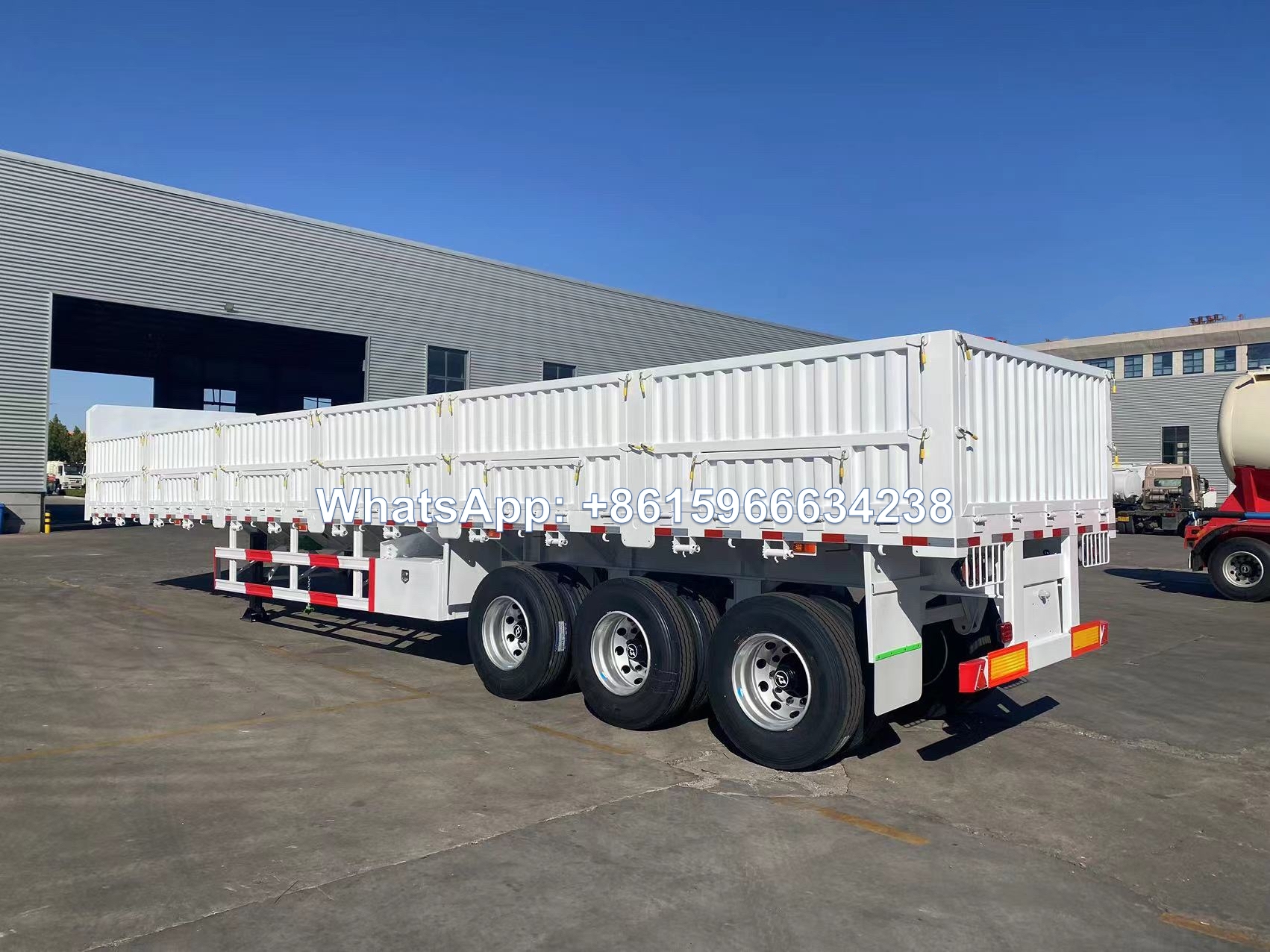

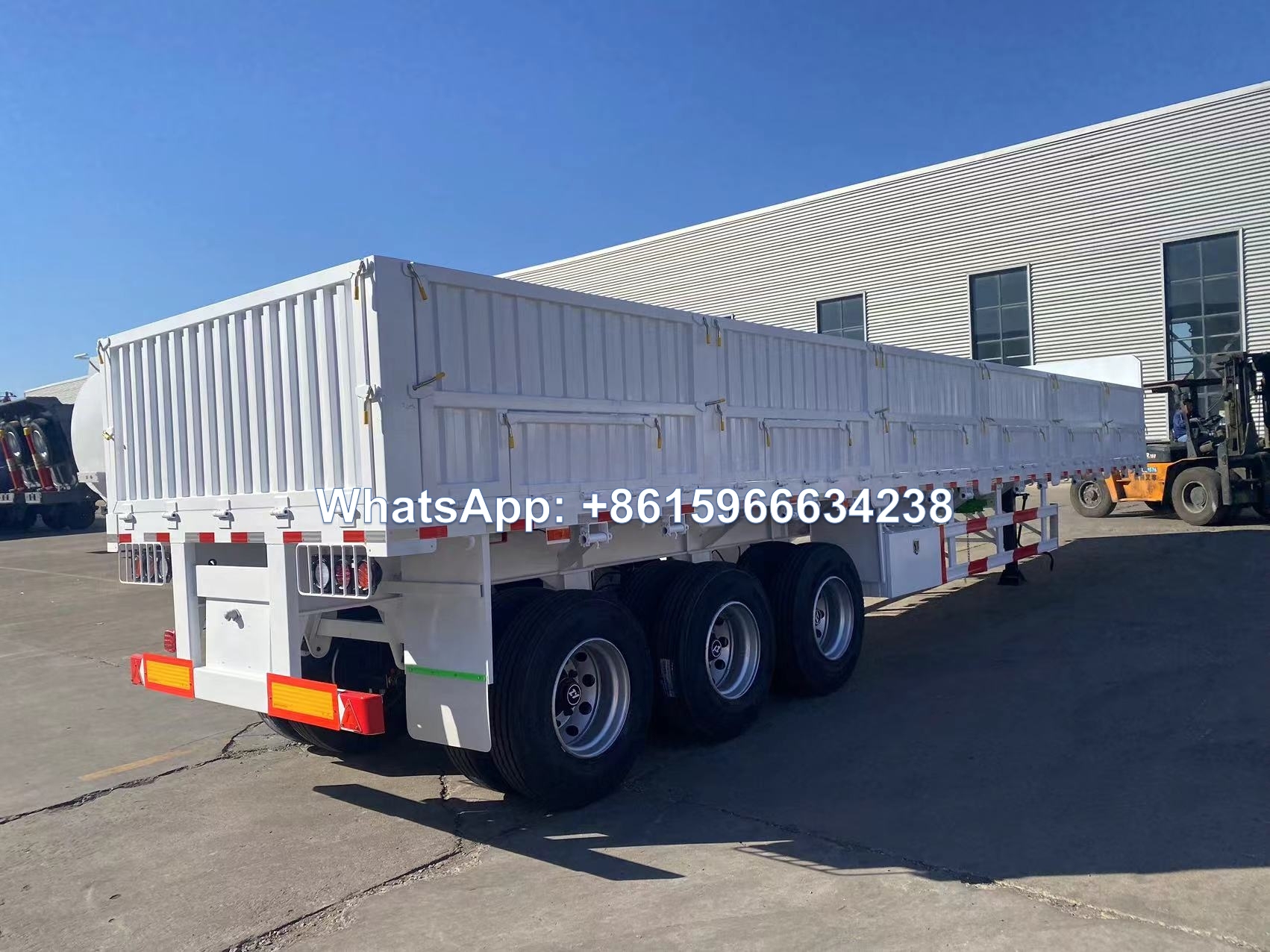

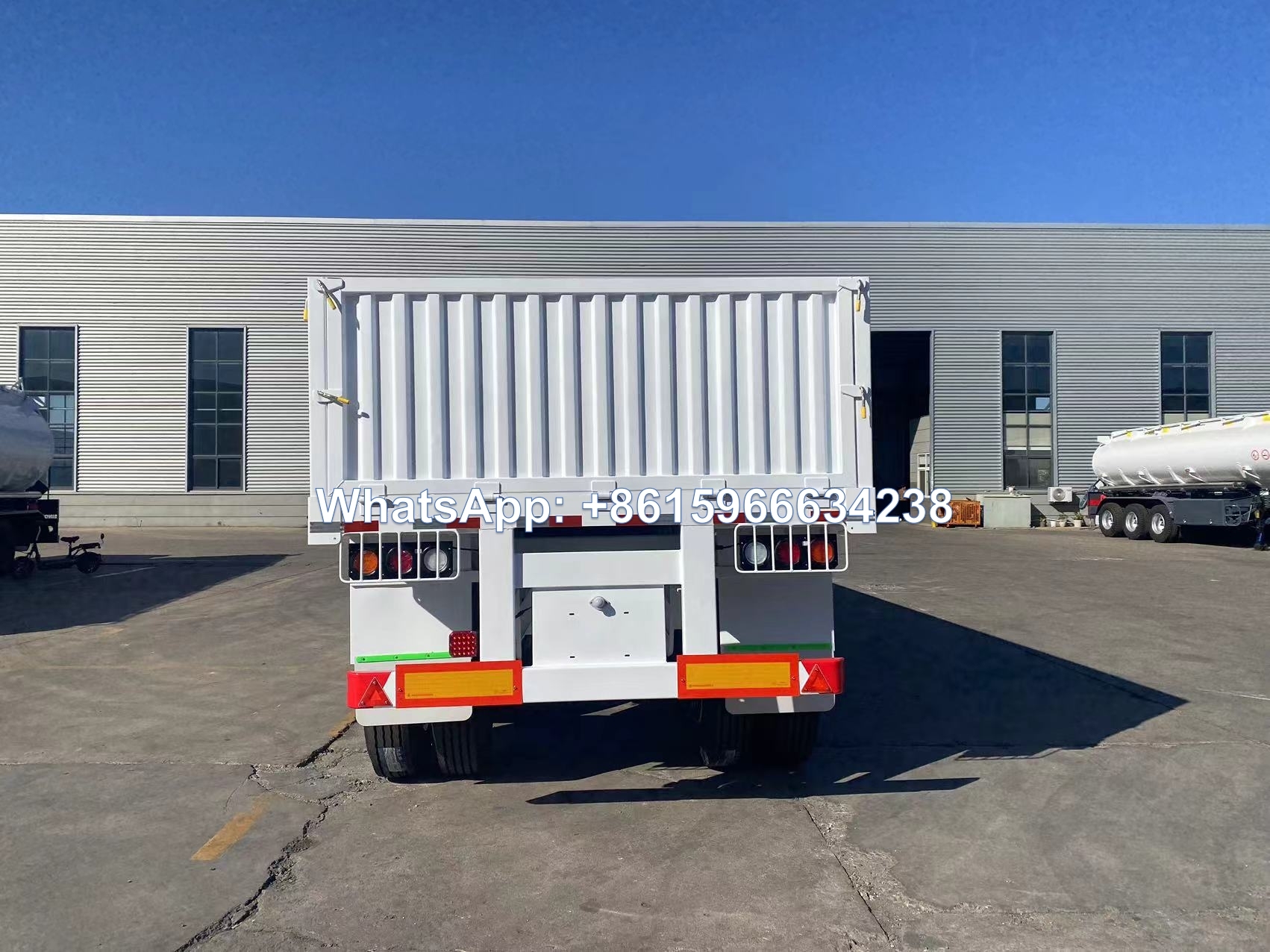

Sinotruk 3 axle dropside trailer sidewall trailer to carry grains containers
| Trailer Name | Sinotruk 3 axle dropside trailer sidewall trailer to carry grains containers |
| Dimensions | 12600mm*2600mm*3000mm, side wall height: 1000mm |
| Loading | 35-50T |
| Tire | 11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle/Hankook/ Bridgestone brand |
| Material | Main beams Q345B, upper flange:14mm, middle:8mm, down:16mm |
| Axles | 13T/16/20T ZY or FUWA brand |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | WABCO Valve with big chamber |
| LandingGears | JOST brand two-speed, Manual operating heavy duty 28ton |
| Suspension | Bogie suspension, spring suspension, Air suspension |

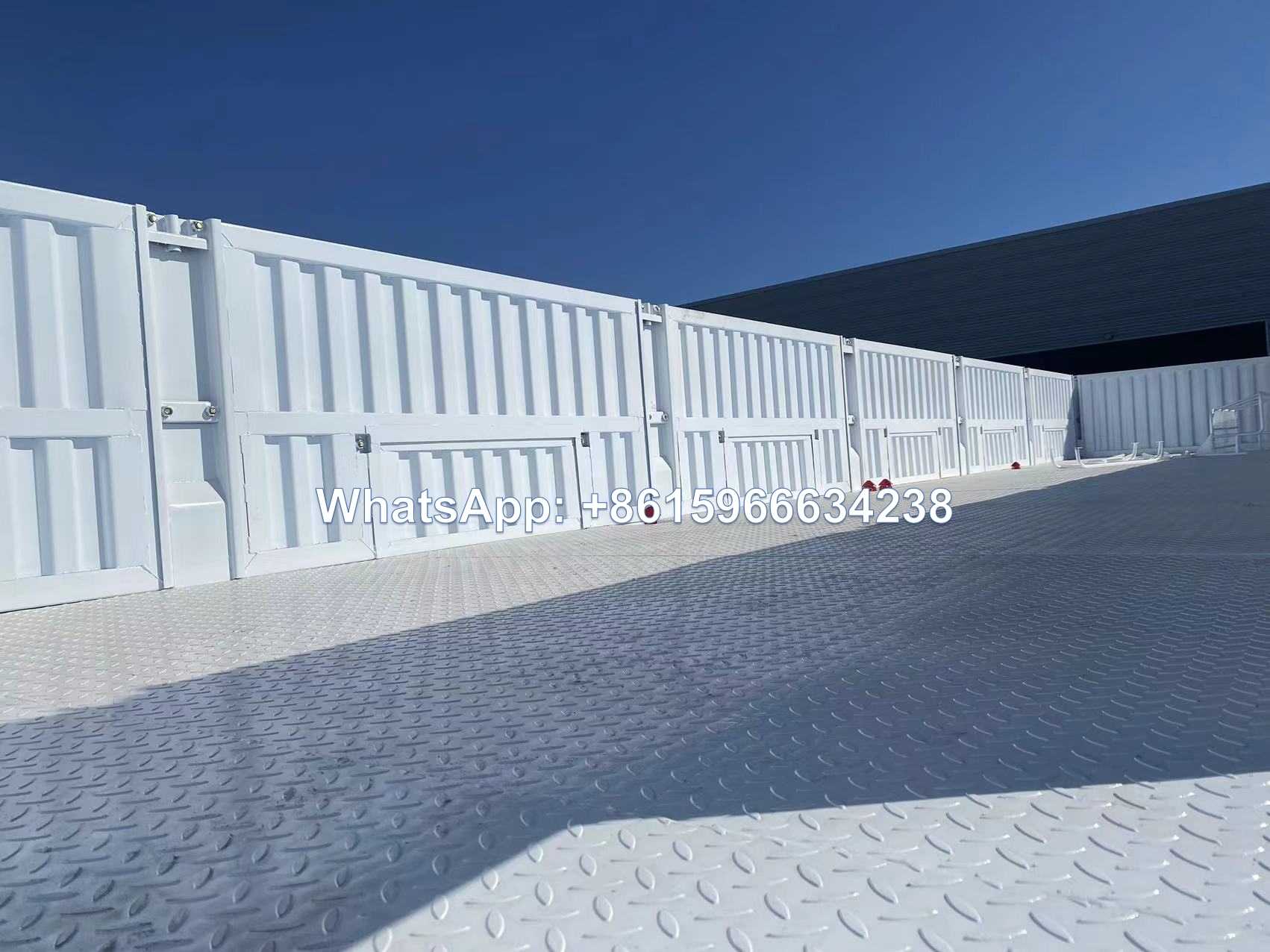

| Floor | 3mm,4mm,6mm diamond steel plate |
| ElectricalSystem | 24v, 7core socket, lights according to European standards (suitable for all market) |
| Side panel | Height 600mm, 800mm, 1000mm |
| Twist lock | 8 or 12 sets |
| Other parts | 1 tool boxs, 1 spare tire carrier |
| Functions | Transport container, loose cargo, bulk cement, bulk rice,etc |
1-It has flat type, concave beams type and tyre appear type.The front longitudinal adopts flat type or goose neck type. Its chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.
2-Low platform is chassis makes a stable transportation. It is suitable for transport different kinds of engineering equipment,large equipment and steel structures.
3-Using three axle balanced type, two axles balanced type or rigid axle suspension.Putting the balanced between the front and rear plate spring and make the same change of the front and rear spring comber and the same load condition
