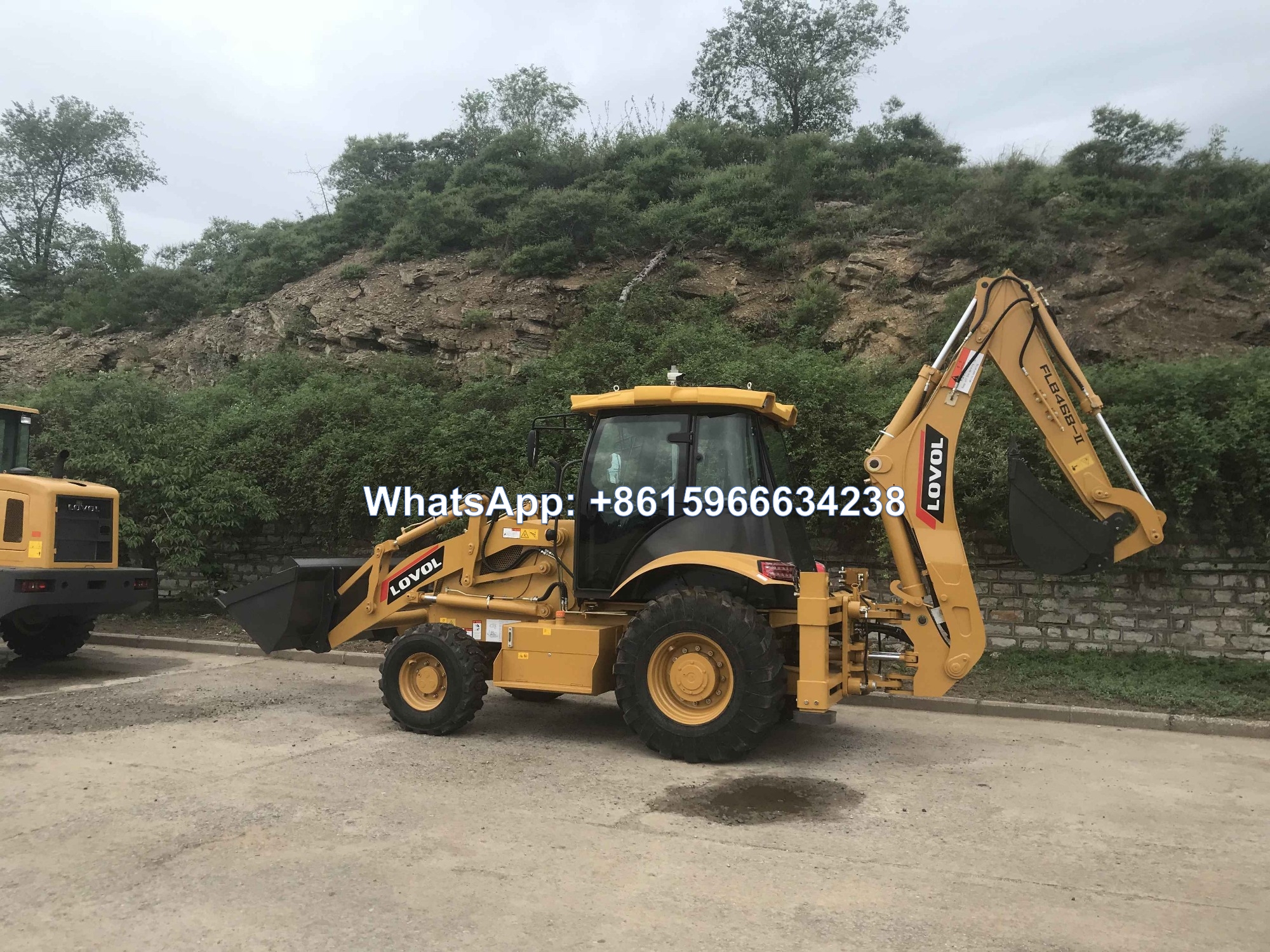

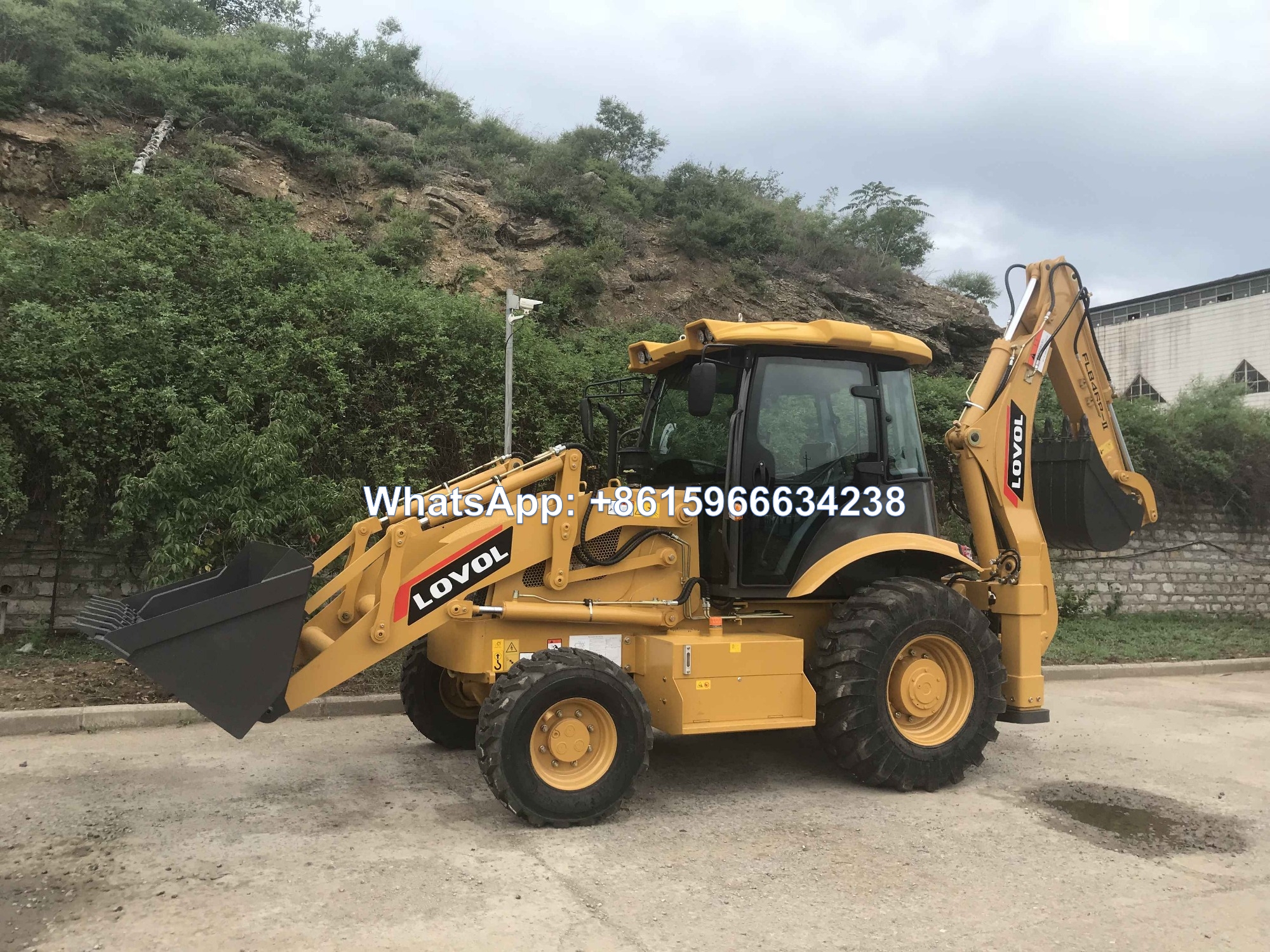

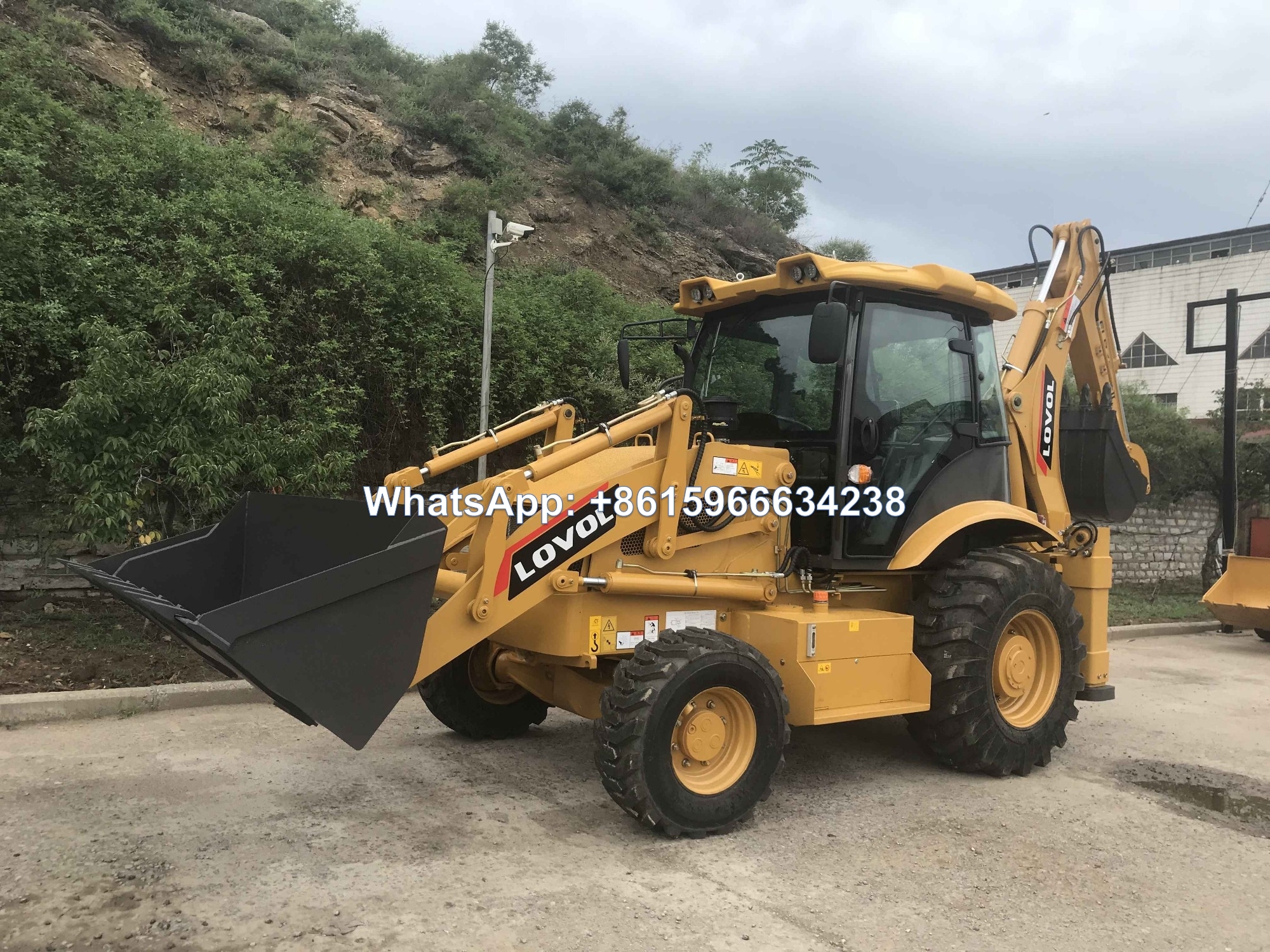

China LOVOL 4WD Backhoe Loader 8200KG with Cummins engine

Machine Weight: 8200kg
Dimension(Long * Breadth * High): 6150*2250*3763mm
Warranty: 1 Year
After-sales Service Provided:  Video technical support, Online support, Free spare parts
Applicable Industries: Building Material Shops, Manufacturing Plant, Fa
$20000.00
Description
China LOVOL 4WD Backhoe Loader 8200KG with Cummins engine


Main Parameter



























Operating Weight

8200KG

Overall Dimension   (L*W*H)

6150*2250*3763mm

Wheel base

2200mm

Min. Ground Clearance

300mm

Bucket Capacity

1.0m3

Breakout Force

38KN

Loading lifting Capacity

2500kg

Bucket Dumping Height

2742mm

Bucket Dumping Distance

925mm

Digging Depth

52mm

Backhoe Capacity

0.3 m3

Max. Digging Depth

4082/4500mm

Swing Angle of Excavator Grab

190o

Max. Pulling Force

39KN

ENGINE















Model

YuchaiYC4A105Z-T20 or Cummins Engine

Type

In Line Direct injection Four-Stroke and Injection Combustion Chamber

Cylinder-Inside Diameter-Stroke

4-105*120

Rated Power

75KW

Rated Speed

2400r/min

Min.Fuel Consumotion

≤242g/km.h

Max. Torque

≥252N.M

Displacement

4.4L

TEERING SYSTEM







Model of Steering Device

BZZ5-250

Steering Angle

±36 o

Min. Turining Radius

6581mm

Pressure of the System

12Mpa

AXLE







Manufacturer

Front xle:Yitu Kaichuang
Rear Axle: Feicheng Axle Factory

Main Transmission Type

Double Reduction

Final Reducer

Single Stage Final Reducer

Rated Loader of Axle

8/18.5t

TORQUE CONVERTER











Model

YJ280

Type

Single-stage Three Elements

Max. Efficiency

84.40%

Inlet Pressure

0.5Mpa

Outlet Pressure

1.1Mpa-1.3Mpa

Cooling Method

Oil-cooling Pressure Circulation

GEARBOX







Type

Fixed Shaft Power Transmission

Oil Pressure of Clutch

1373Kpa—1569 Kpa

Gears

Two Gears Ahead, Two Gears Astern

Max. Speed

28Km/h

TIRE





Model

14-17.5/19.5L-24

Pressure of front wheel

0.55Mpa

Pressure of Rear wheel

0.223Mpa

BRAKE SYSTEM



Service Brake

Air Over Oil Caliper Brake(External Type,Self-regulation,Self -balance)

Emergency Brake

Operation Power Implementing brake/Manual Operation Power Terminating Brak

HYDRAULIC SYSTEM









Digging Power of Excavator Grab

46.5KN

Digging Power of Dipper

31KN

Bucket lifting Time

6.8s

Bucket Lowering Time

3.1s

Bucket DischargeTime

2.0s
