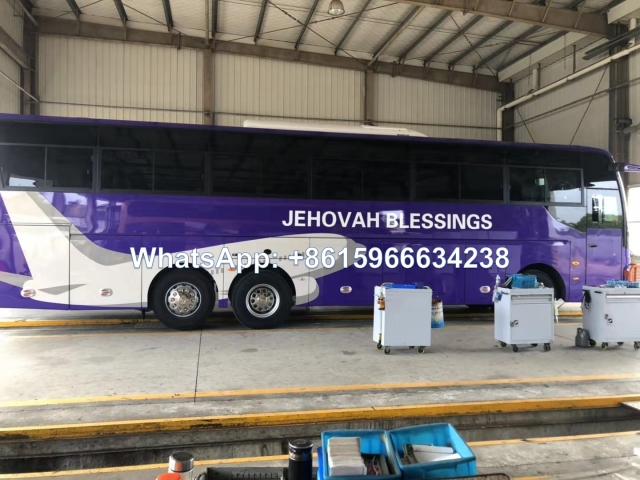

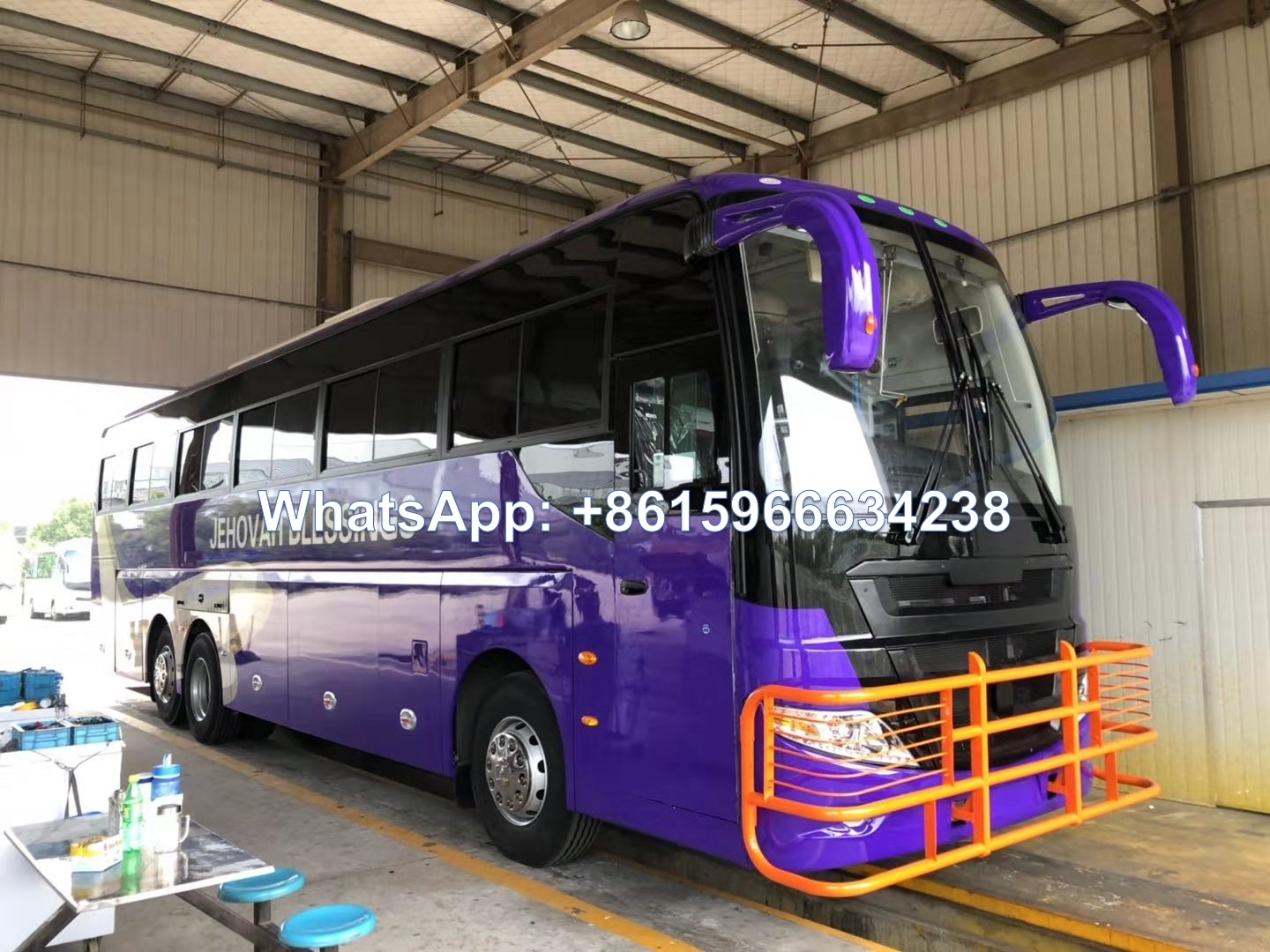

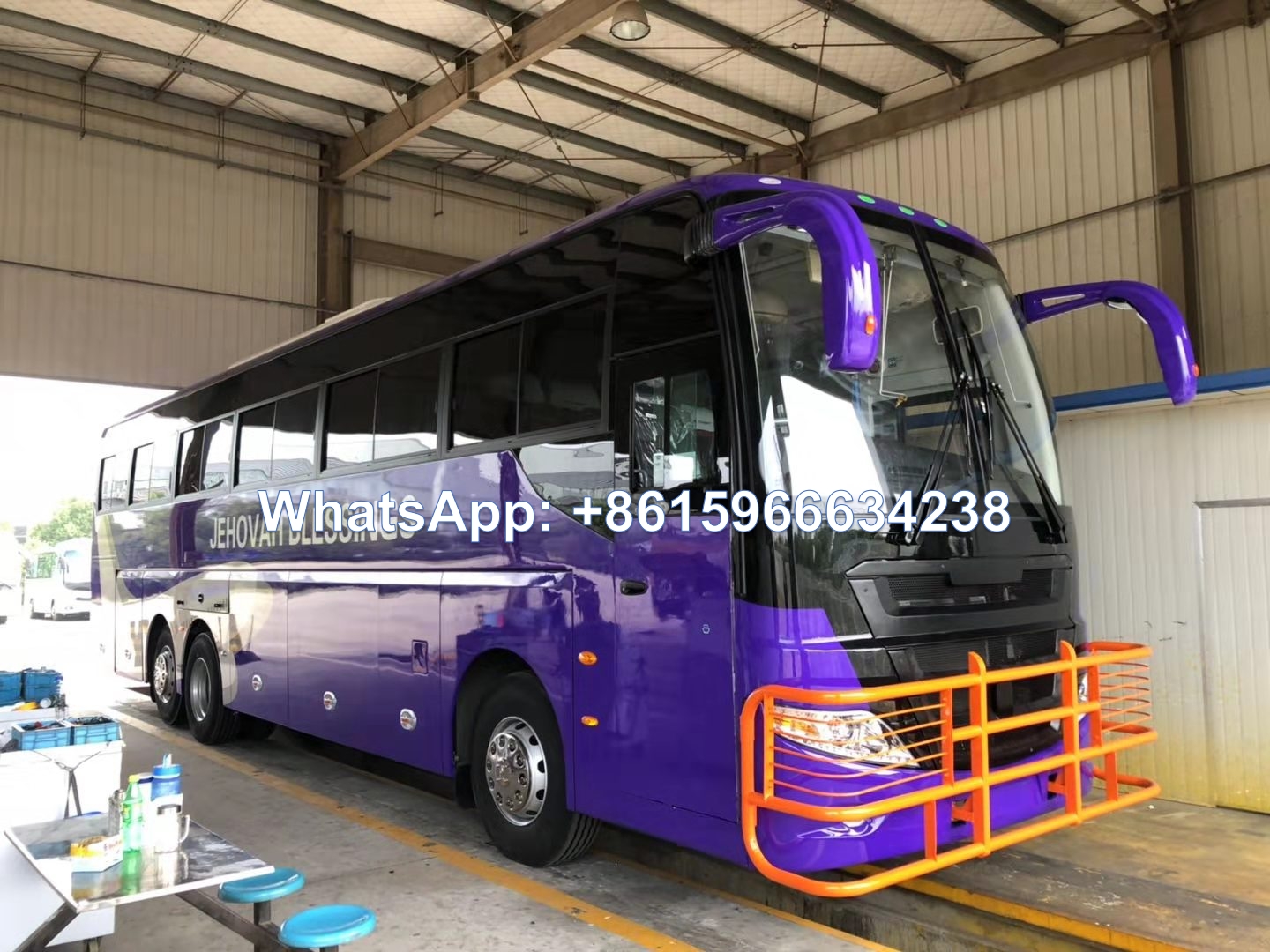

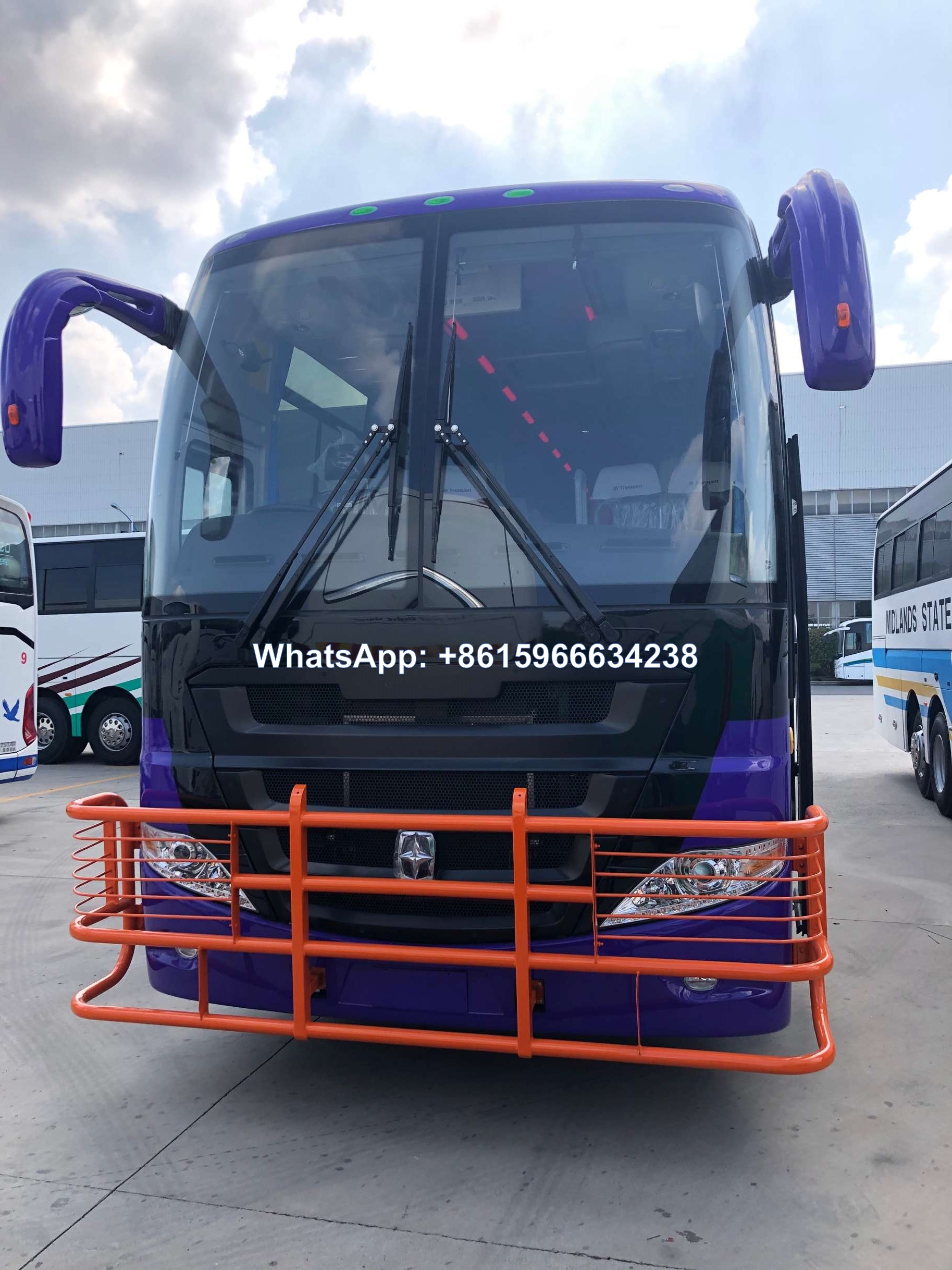

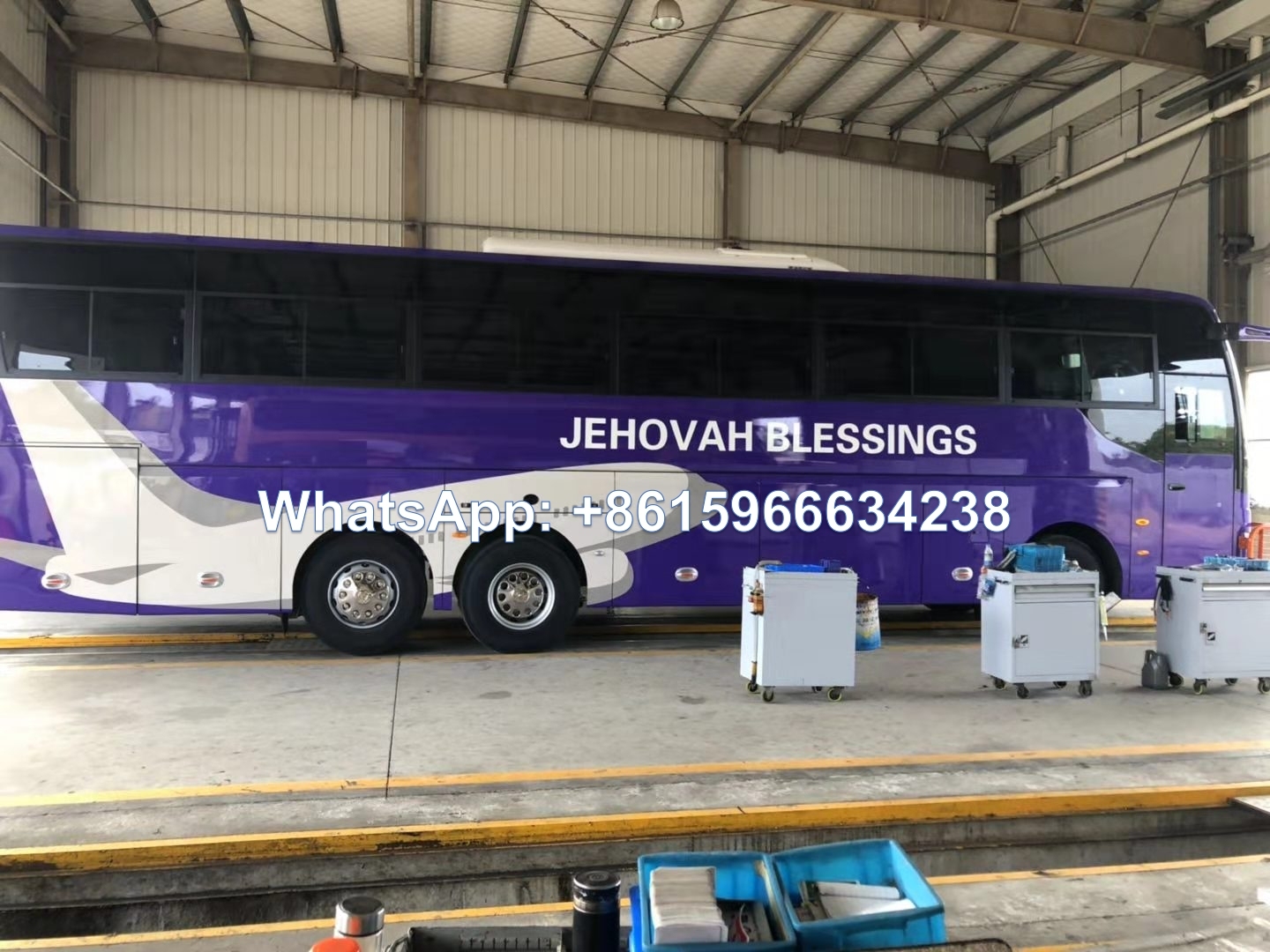

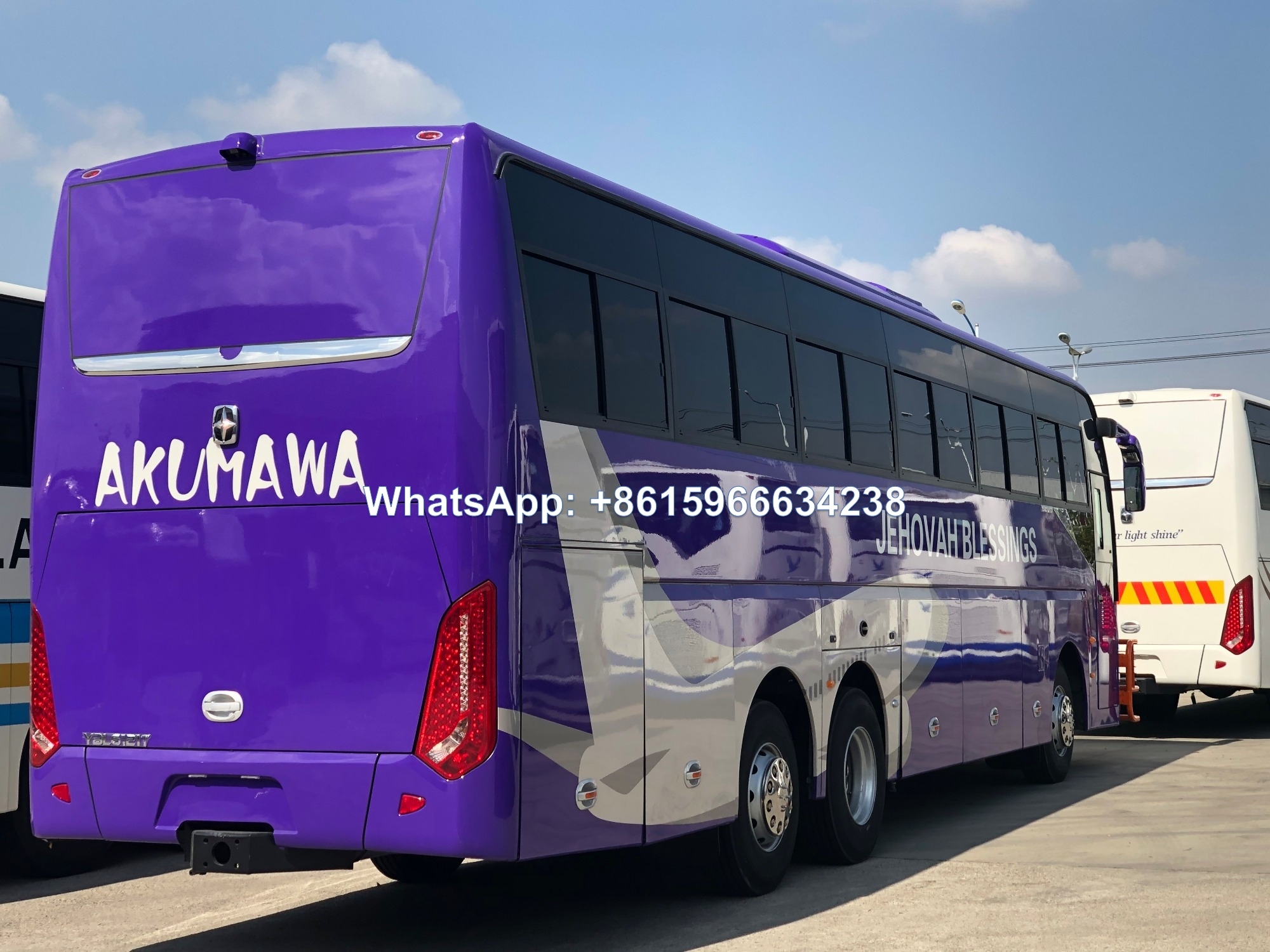

Tri-Axle Luxury Coach bus | Left/Right hand drive bus | ||
dimension (L×W×H)(mm) | 12500*2550*3900 | ||
seats capcacity | 59 seats (2+2 lay out) | ||
Wheel base(mm) | 5150/1350 | ||
Fuel tank capacity | 600L | ||
Max speed | 140km/h | ||
F/R overhang(mm) | 2610/3380 | ||
Drive mode | 6*2 (3 axles) | ||
engine model | CUMMINS ENGINE L360 20 (360HP) FRONT ENGINE | ||
max output power | 360HP | ||
emission standard | Euro 2 | ||
displacement(L) | 8.9 | ||
rated power(kw) | 264/2200 KW/rpm | ||
max.torque(N.m) | 1480 | ||
transmission | 6DS150T six speed, FAST brand | ||
retarder | E-Retarder | ||
clutch | SACHS Brand: φ430 | ||
suspension system | Leaf spring suspension, The third axle air suspension | ||
front axle | dongfeng front axle,Front drum brake, load capacity :7T | ||
following axle | dongfeng rear axle with drum brake, dongfeng third axle with disc brake, load capacity : 13T/5.5T | ||
braking system | dual-circuit pneumatic brake, air dryer, energy spring storage parking brake | ||
ABS | Yes | ||
tyre | 12R22.5 tubeless radial tire with spare tyre | ||
Steering | ZF Power steering, RHD | ||
Air-conditioner | Yes, spheros non-independent A/C with 32000KCAL cooling capacity | ||
Automatic Slack Adjuster | Local automatic Slack Adjuster | ||
Defroster | Yes | ||
Passenger door | Aluminium pneumatic outward-swing door, with remote door, with dirver door | ||
Front windshield | Two pieces front windshield laminated glass | ||
Side window | Upper 1/3 fixed glass, down 2/3 sliding windows. with toughened black glass | ||

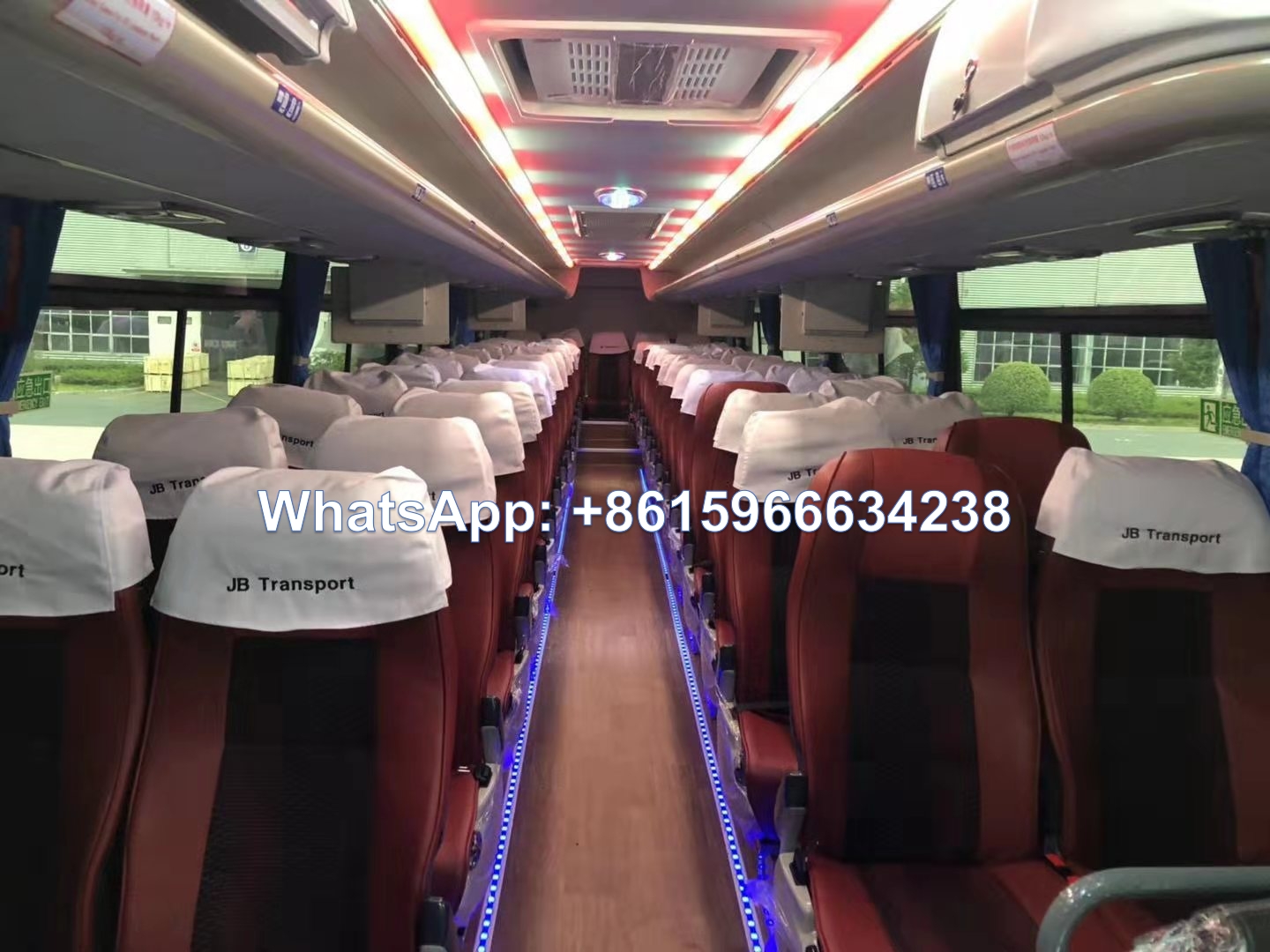

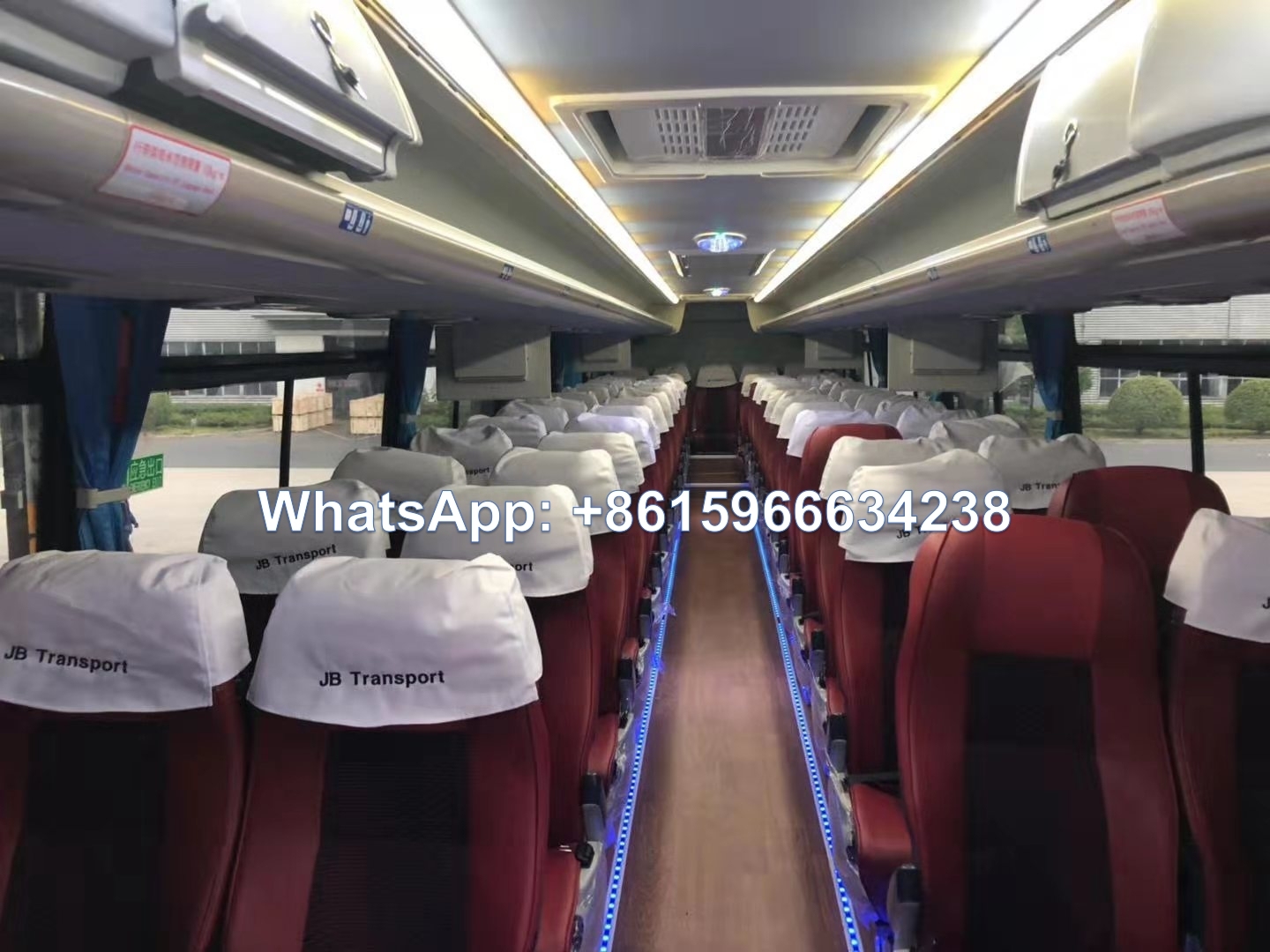

Passenger seats | 2+3 total 65; A2 seats with high backrest, back and Forth adjustable ( with two points seat belt), seats with usb plug, leather |
||

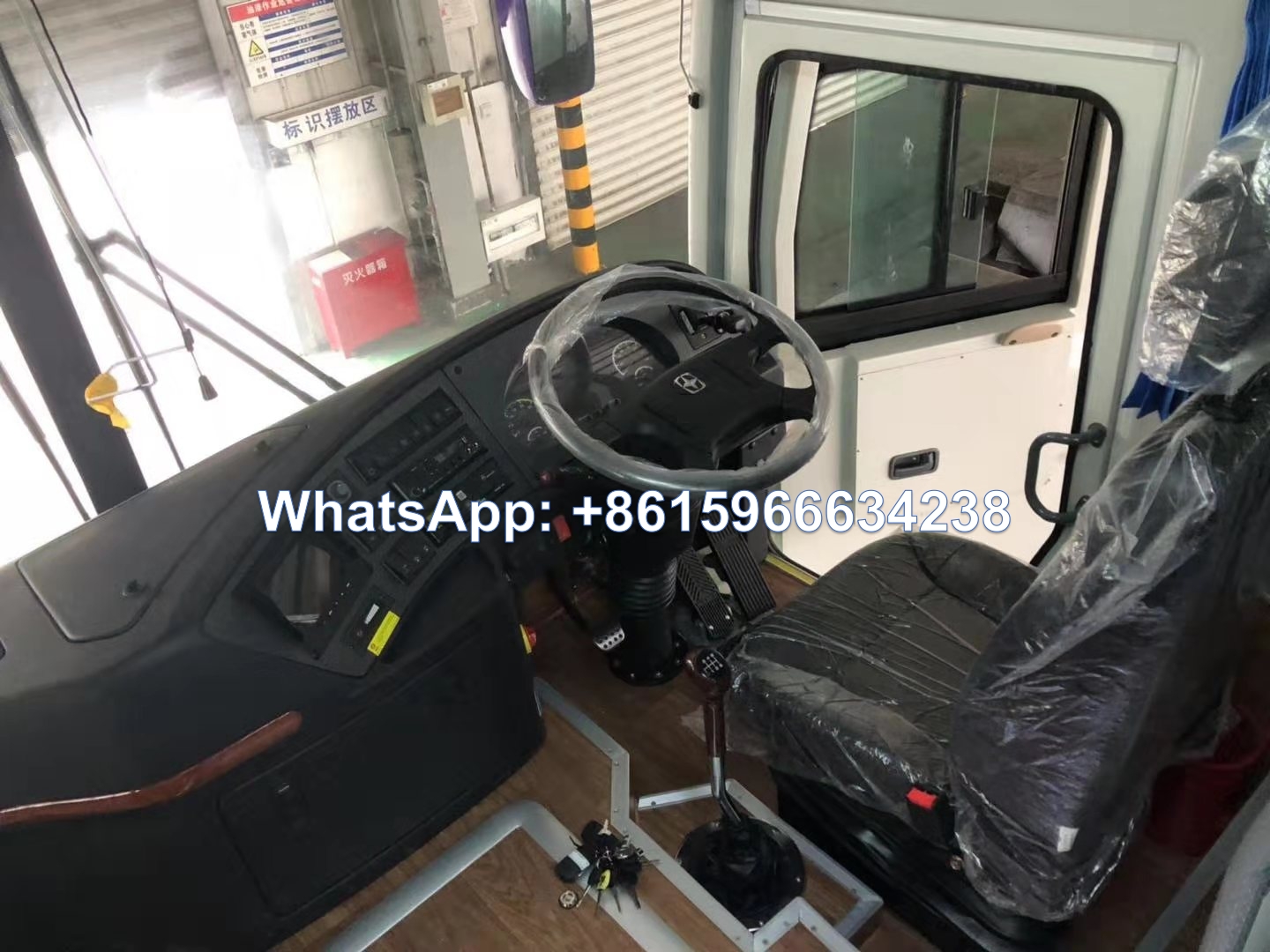

Driver’s seat | high backrest, back and Forth adjustable driver’s seat | ||
Inner luggage rack | luxury luggage rack | ||

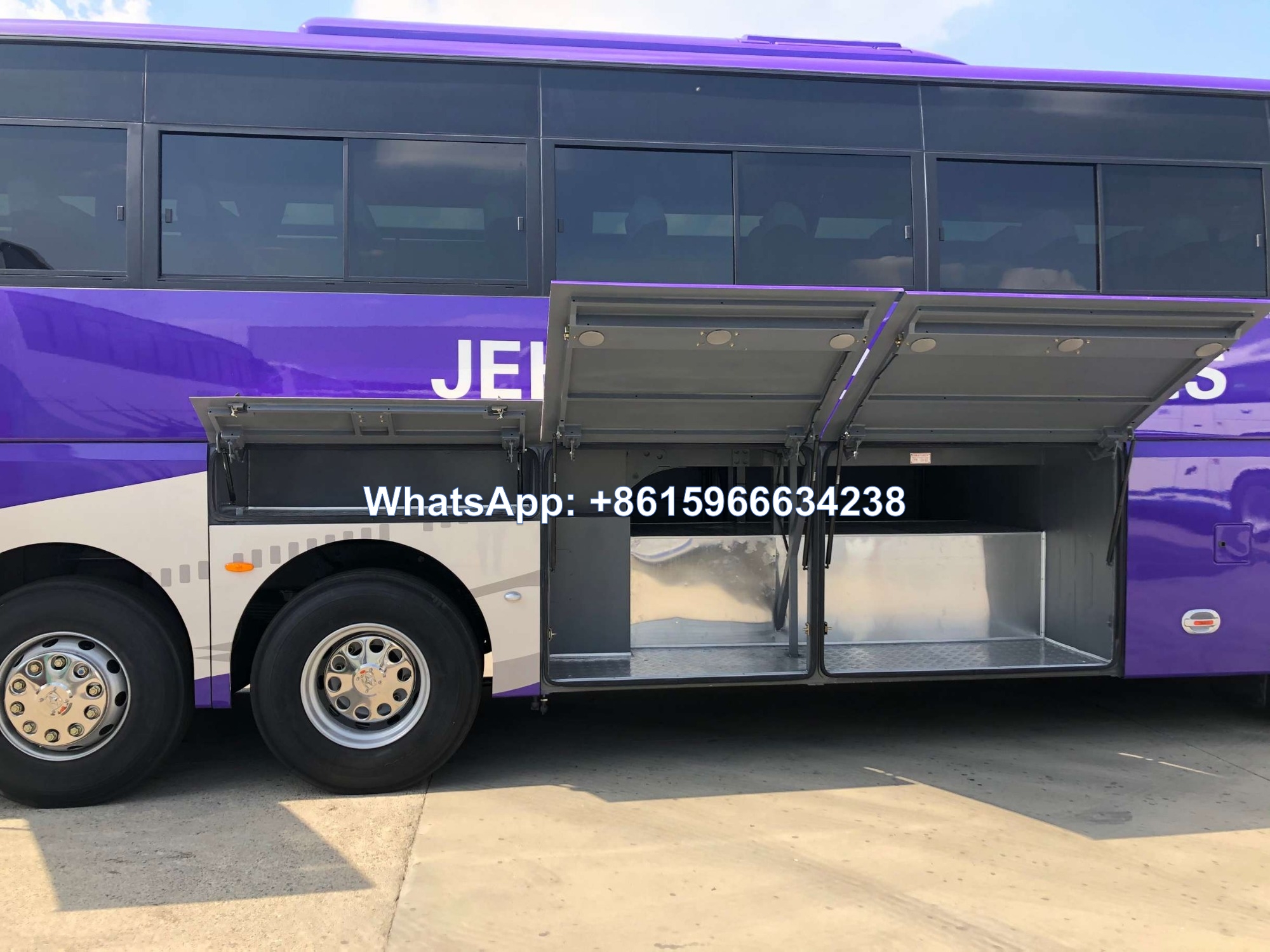

Luggage compartment | side luggage compartment, floor cover by aluminium plate | ||
Side luggage compartment door | Manual rotated side luggage compartment door | ||
lighting | 2 long line roof LED lamp, 3 units LED roof lamp; With reading lamp | ||
Rearview mirror | Standard | ||
Floor | Wear-resisting flooring | ||
Toilet | YES | ||

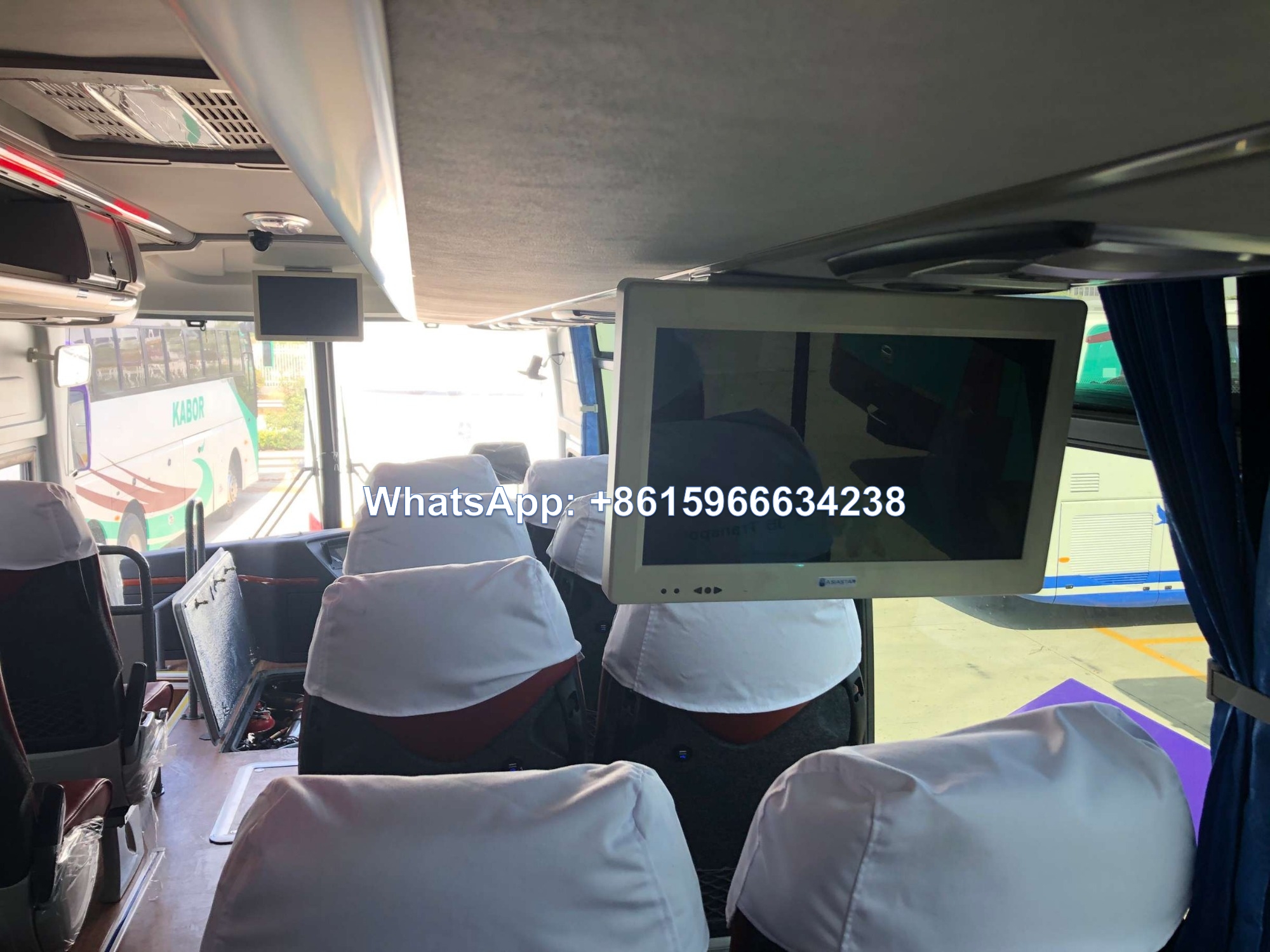

Tv | 320G HDD player + one 19 inch fixed LCD and two folded 19 inch LCD | ||
Dispenser | Yes | ||
Curtain | Folded cloth curtain; With manual sunshade | ||
Clock | Standard | ||

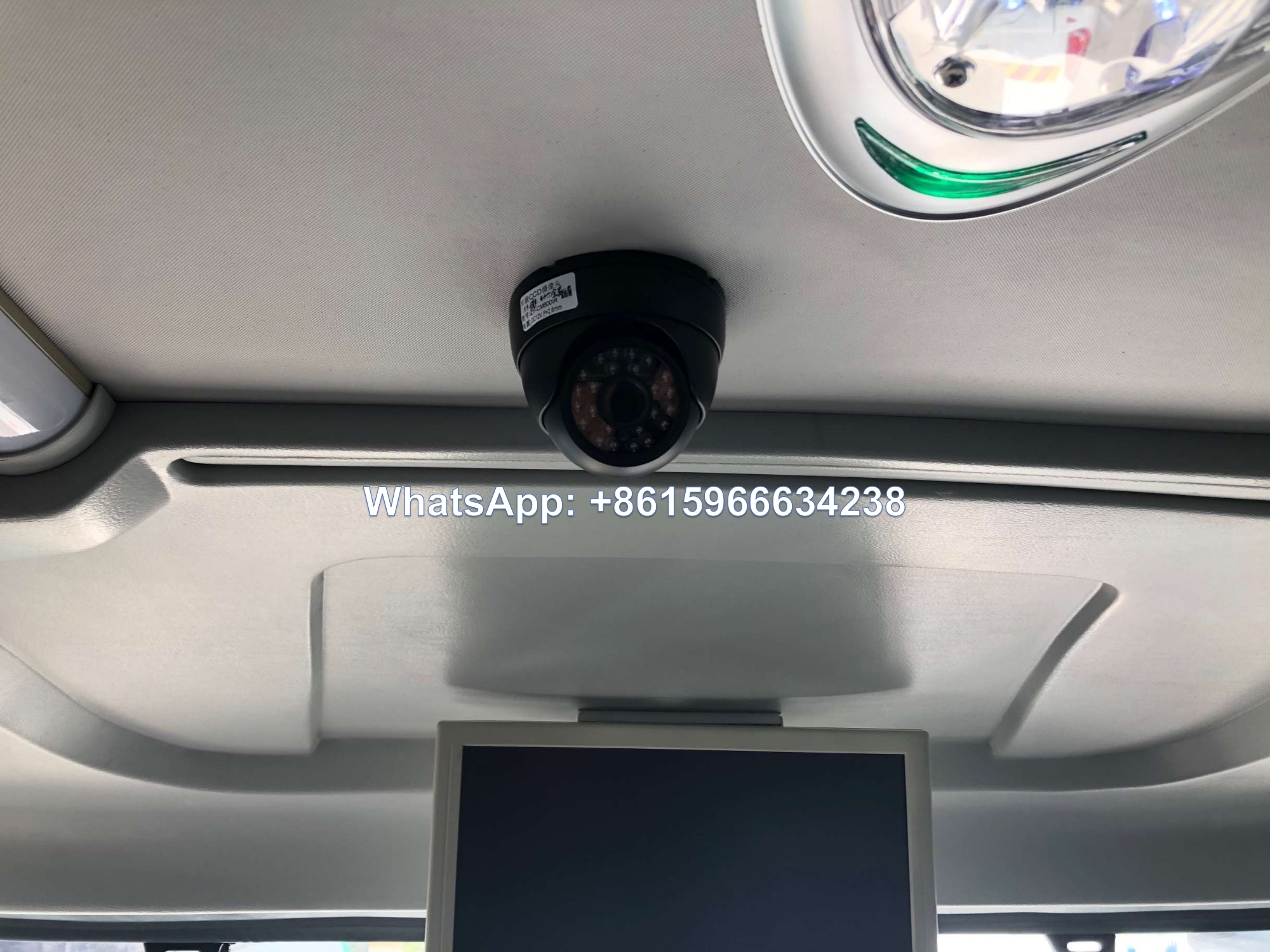

Monitoring system | Rear view monitor and three monitor inside | ||
Others | Chassis with frame, electrophoresis for structure; Paint: Import Plain lacquer |
