China 12.5 meters 3 axle Coach Bus 60-70 seats luxury bus

Seats: 60-70
Emission Standard: Euro 2 or Euro 3
Transmission Type: Manual
Condition: New
Engine: China Weichai or Cummins
Engine Capacity: 6 - 8L
Brand Name: Asia Star
Product name: Coach bus
Wheel Base: 5150mm + 1350mm
Engine: Weichai or Cumm
$75000.00
Description
China 12.5 meters 3 axle Coach Bus 60-70 seats luxury bus
Tri-Axle Luxury Coach bus  Left/Right hand drive bus
dimension (L×W×H)(mm) 12500*2550*3900
seats capcacity 59 (2+2lay out)
Wheel base(mm) 5150/1350
Fuel tank capacity 600L
Max speed 140km/h
F/R overhang(mm) 2610/3380
Drive mode 6*2 (3 axles)
engine model CUMMINS ENGINE L360 20 (360HP) FRONT ENGINE
max output power 360HP
emission standard Euro 2
displacement(L) 8.9
rated power(kw) 264/2200 KW/rpm
max.torque(N.m) 1480
transmission 6DS150T six speed, FAST brand
retarder E-Retarder
clutch SACHS Brand: φ430
suspension system Leaf spring suspension, The third axle air suspension
front axle dongfeng front axle,Front drum brake, load capacity :7T
following axle dongfeng rear axle with drum brake, dongfeng third axle with disc brake, load capacity : 13T/5.5T
braking system dual-circuit pneumatic brake, air dryer, energy spring storage parking brake
ABS Yes
tyre 12R22.5 tubeless radial tire with spare tyre
Steering ZF Power steering, RHD

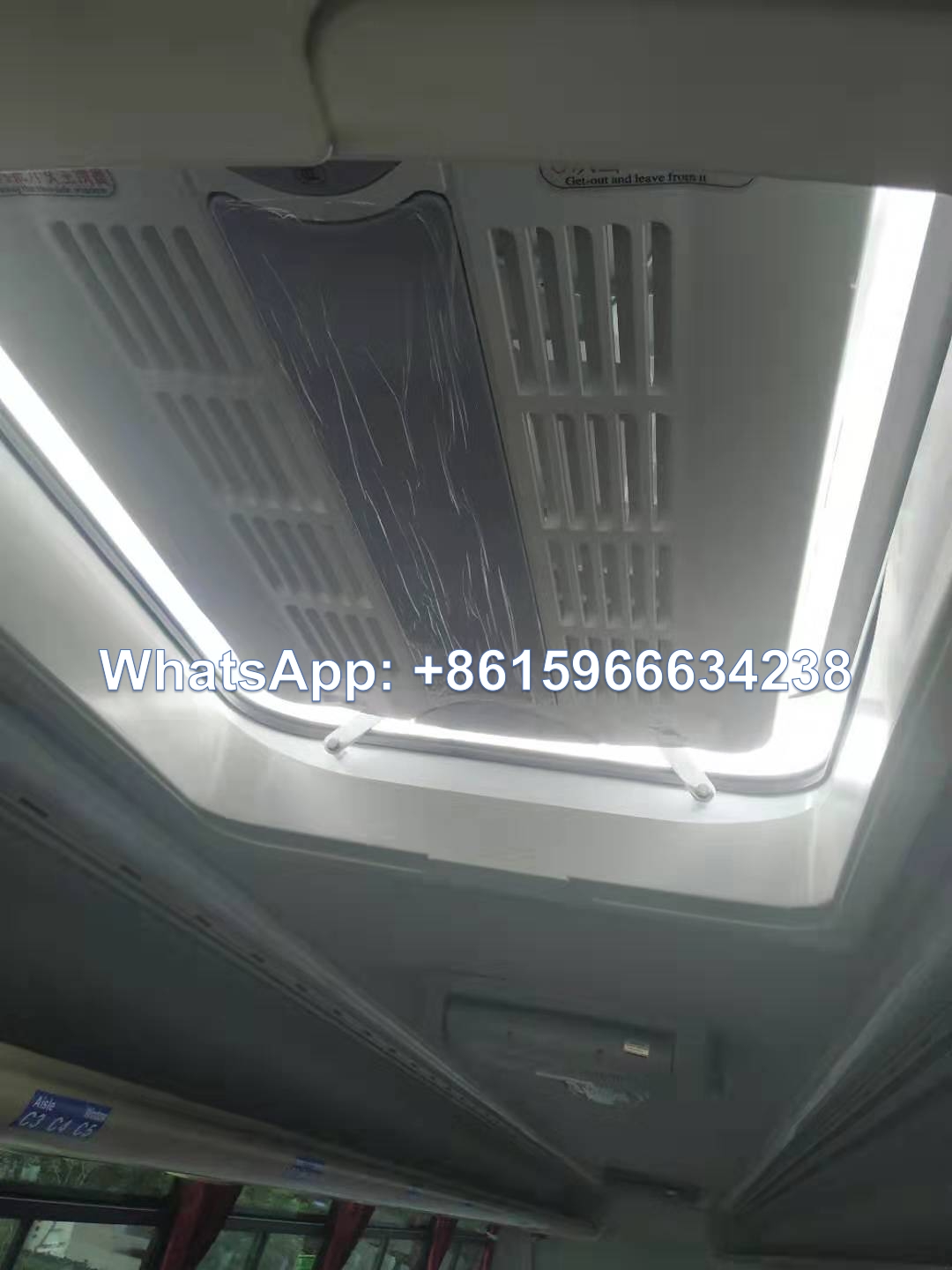

Air-conditioner Yes, spheros non-independent A/C with 32000KCAL cooling capacity
Automatic Slack Adjuster Local automatic Slack Adjuster
Defroster Yes

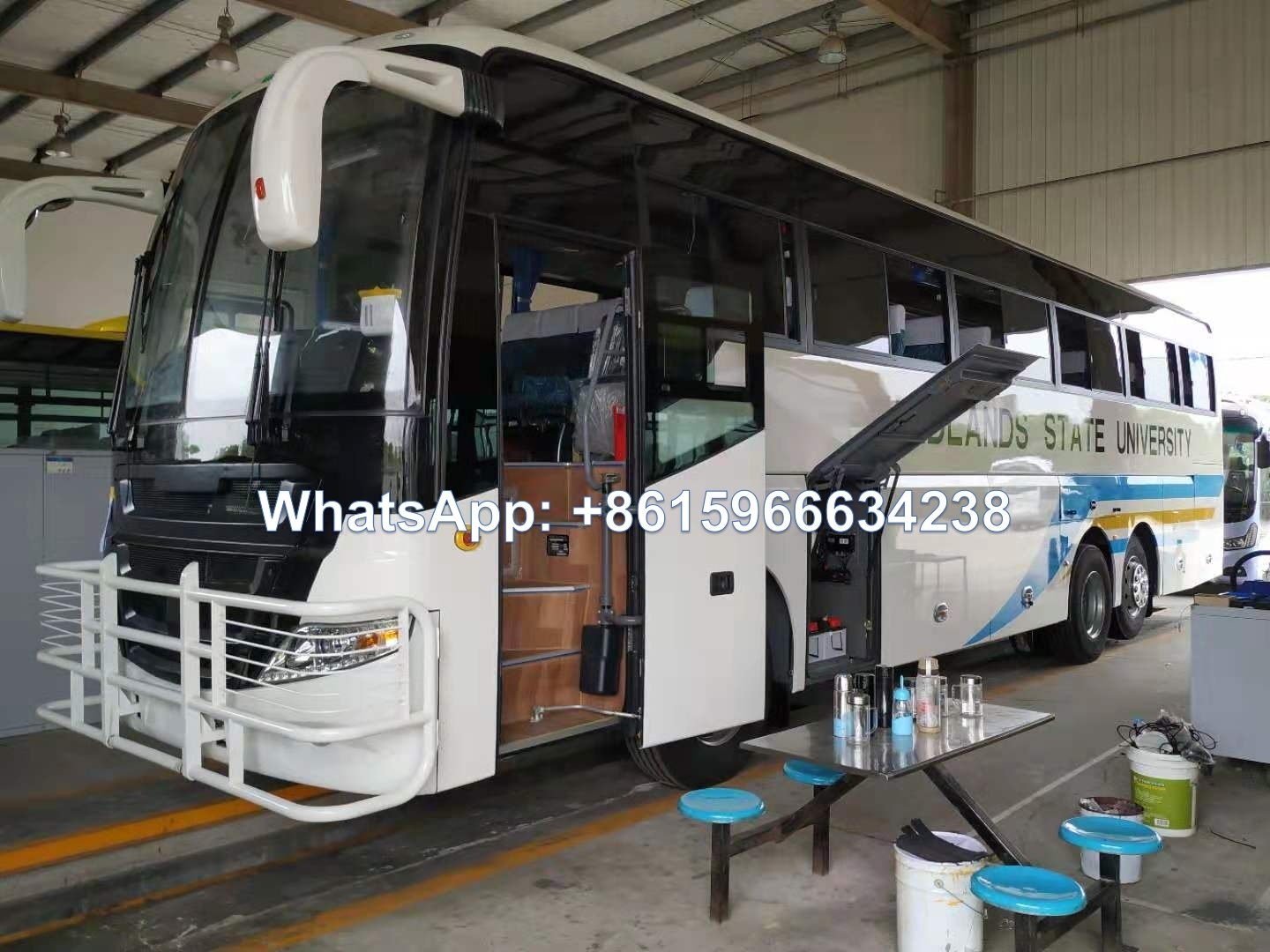

Passenger door Aluminium  pneumatic outward-swing door, with remote door, with dirver door

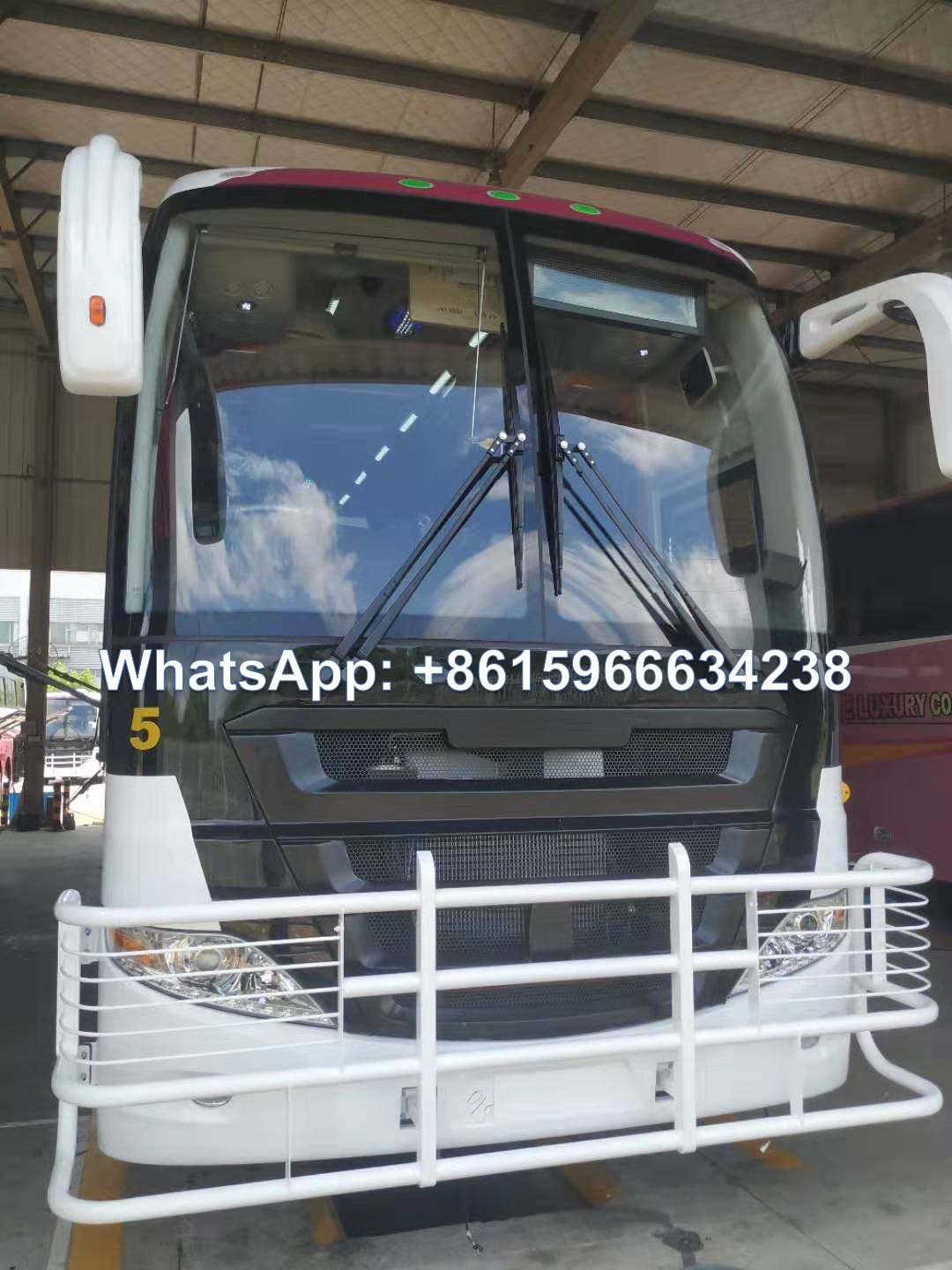

Front windshield Two pieces front windshield laminated glass
Side window Upper 1/3 fixed glass, down 2/3 sliding windows. with toughened black glass
Passenger seats 2+3  total 72 seats; A2 seats with high backrest, back and
Forth adjustable ( with two points seat belt), seats with usb plug, leather
Driver’s seat            high backrest, back and Forth adjustable driver’s seat
Inner luggage rack luxury luggage rack
Luggage compartment side luggage compartment, floor cover by aluminium plate
Side luggage compartment door Manual rotated side luggage compartment door
lighting 2 long line roof LED lamp, 3 units LED roof lamp; With reading lamp
Rearview mirror Standard
Floor Wear-resisting flooring
Toilet YES
Tv 320G HDD player + one 19 inch fixed LCD and two folded 19 inch LCD
Dispenser Yes
Curtain Folded cloth curtain; With manual sunshade
Clock Standard
Monitoring system Rear view monitor and three monitor inside
Others Chassis with frame, electrophoresis for structure;
Paint: Import Plain lacquer







Contact me in 24 hours, I can serve you at any times!
We are professional manufacturer. So we always focus on our quality.

Summer Guo
SINOTRUCK ASIA CO.,LIMITED
Whatsapp/Wechat/Viber:+8615966634238
Tel:+8653185585140
Fax:+8653185585141
Email:mantruck02@gmail.com
