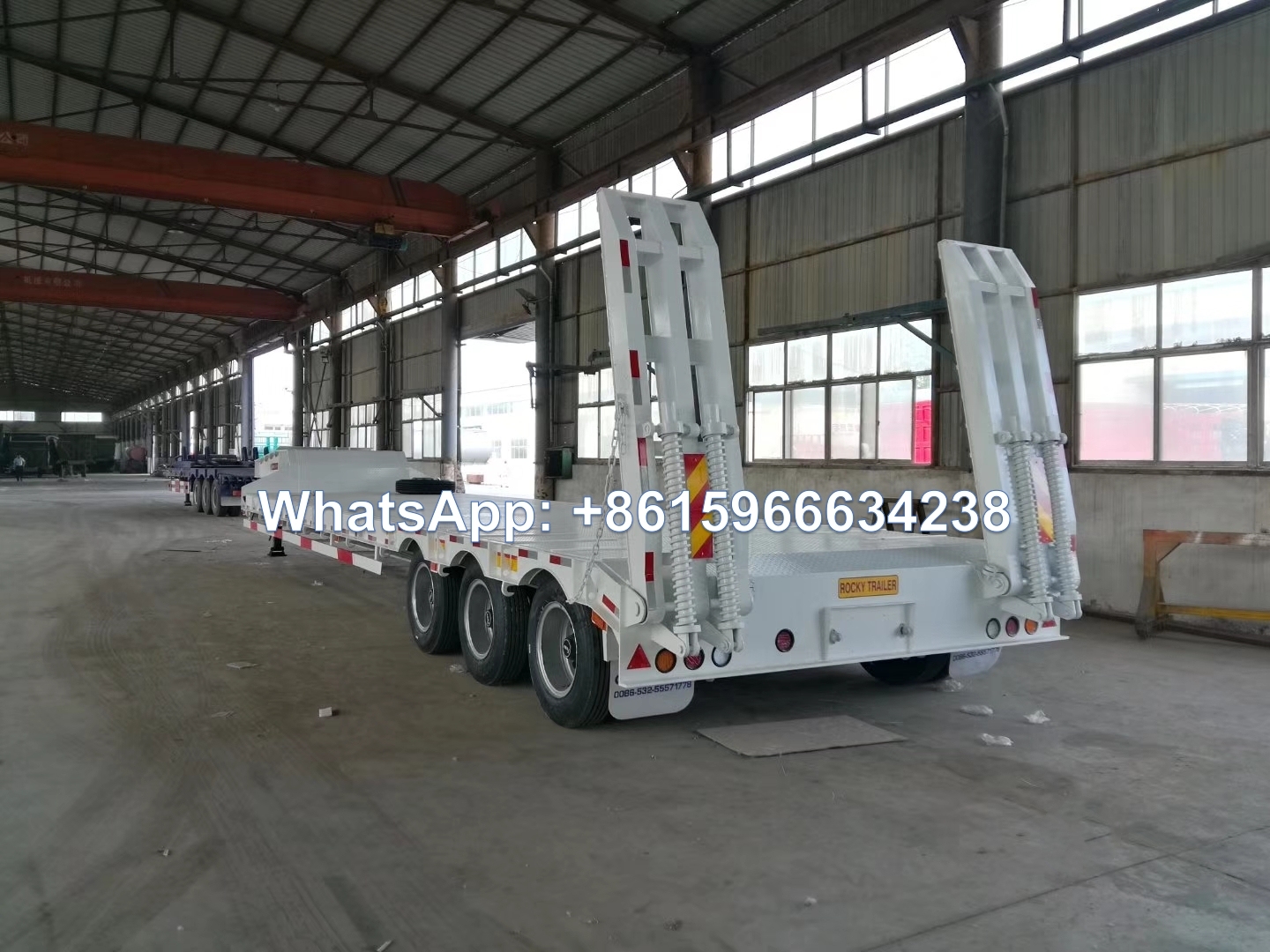

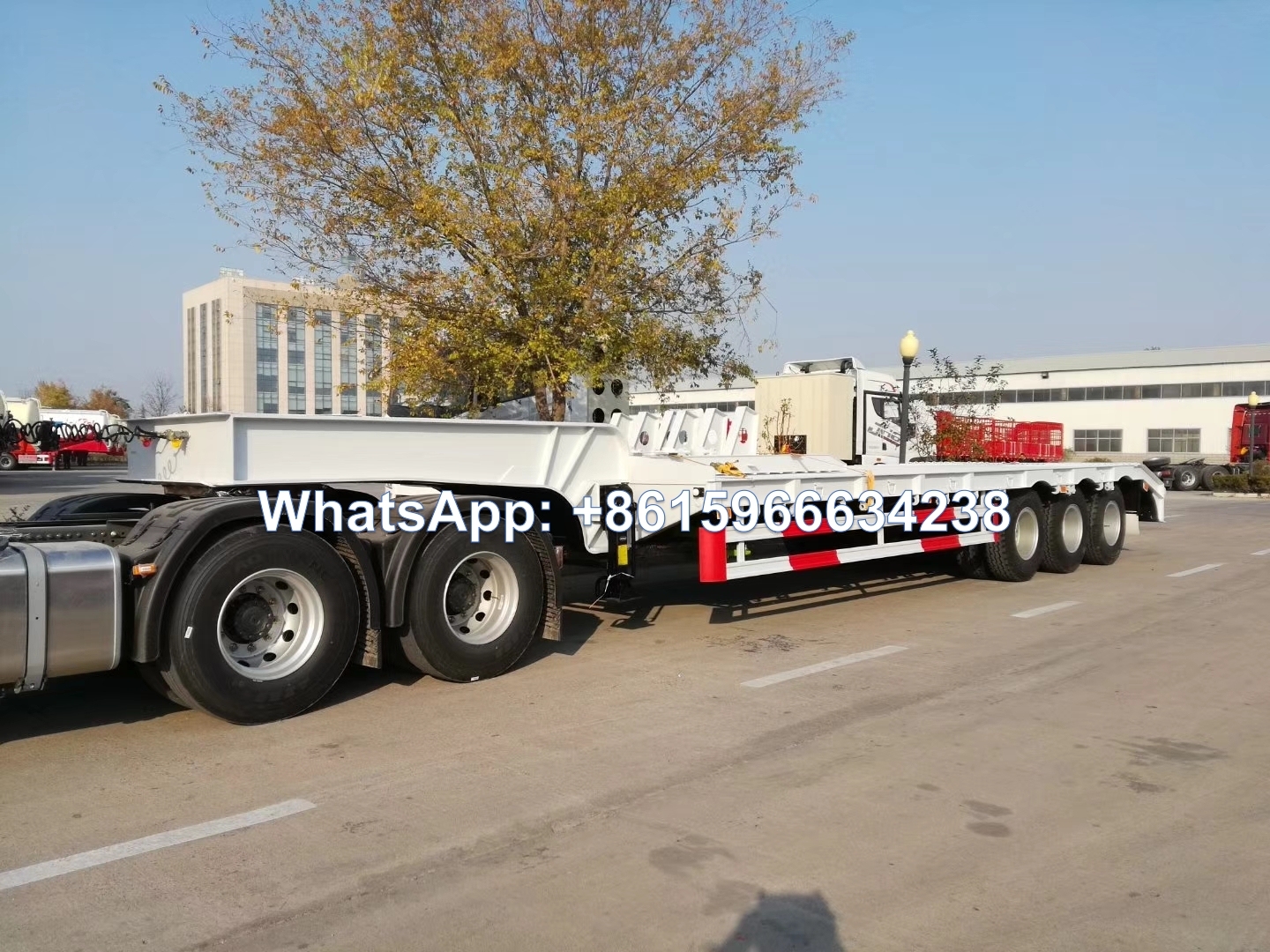

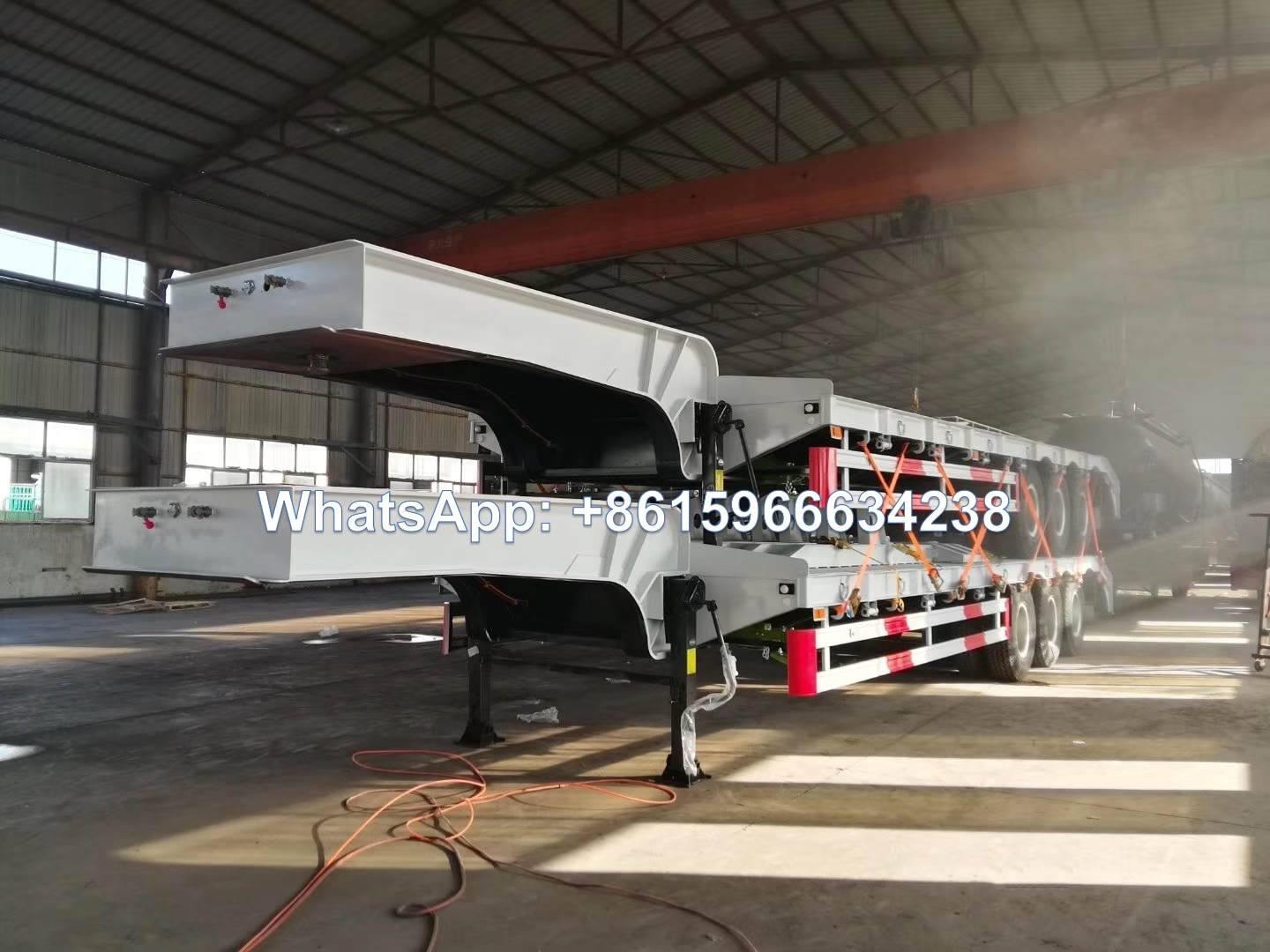

3 Axle Lowbed semi trailer lowboy truck trailer
|
Weight:
|
|
|
|
Tare Weight |
9000kg |
|
|
Loading Capacity |
40 Ton- 60ton |
|
|
Axle Weight Load |
13T |
|
|
Specification: |
|
|
|
|
Axle number |
3 |
|
Axle Brand |
Fuwa/BPW/ ZY |
|
|
Suspension |
Common mechanical |
|
|
King Pin |
90mm traction pin |
|
|
Dimensions (LxWxH) |
13000×3000×1550mm |
|
|
Support legs |
28T |
|
|
Wheel Rim |
9.00-22.5 Vacunnm tire |
|
|
Wheelbase |
6680+1310+1310mm |
|
|
Steel Spring |
10pieces per axle |
|
|
Landing Gear |
Manual operating, Heavy duty landing gear (Brand Optional upon chioce) |
|
|
Floor |
3mm Diamond steel plate |
|
|
Accessories |
1 Set standard tool box |
|
|
Light |
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
Painting |
1coat of anticorrosive prime, twice coats of final paint |
|
|
Tire: |
|
|
|
|
Tire spe. |
12R22.5 ,Triangle brand |
|
Number of Tire |
12 pieces |
|
|
Spare Tire Carriers |
2 pieces |
|
|
Frame: |
|
|
|
|
Main beam |
The height of the beam is 500mm; Upper plate:14mm;Mown plate is 16mm;Middle plate is 8mm. |
|
Brake: |
|
|
|
|
Brake Chamber |
Six big chamber( Brand Optional upon chioce ) |
|
Brake system |
Dual Line Brake system (ABS Optional upon chioce) |
|
1-It has flat type, concave beams type and tyre appear type.The front longitudinal adopts flat type or goose neck type. Its chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.
2-Low platform is chassis makes a stable transportation. It is suitable for transport different kinds of engineering equipment,large equipment and steel structures.
3-Using three axle balanced type, two axles balanced type or rigid axle suspension.Putting the balanced between the front and rear plate spring and make the same change of the front and rear spring comber and the same load condition
