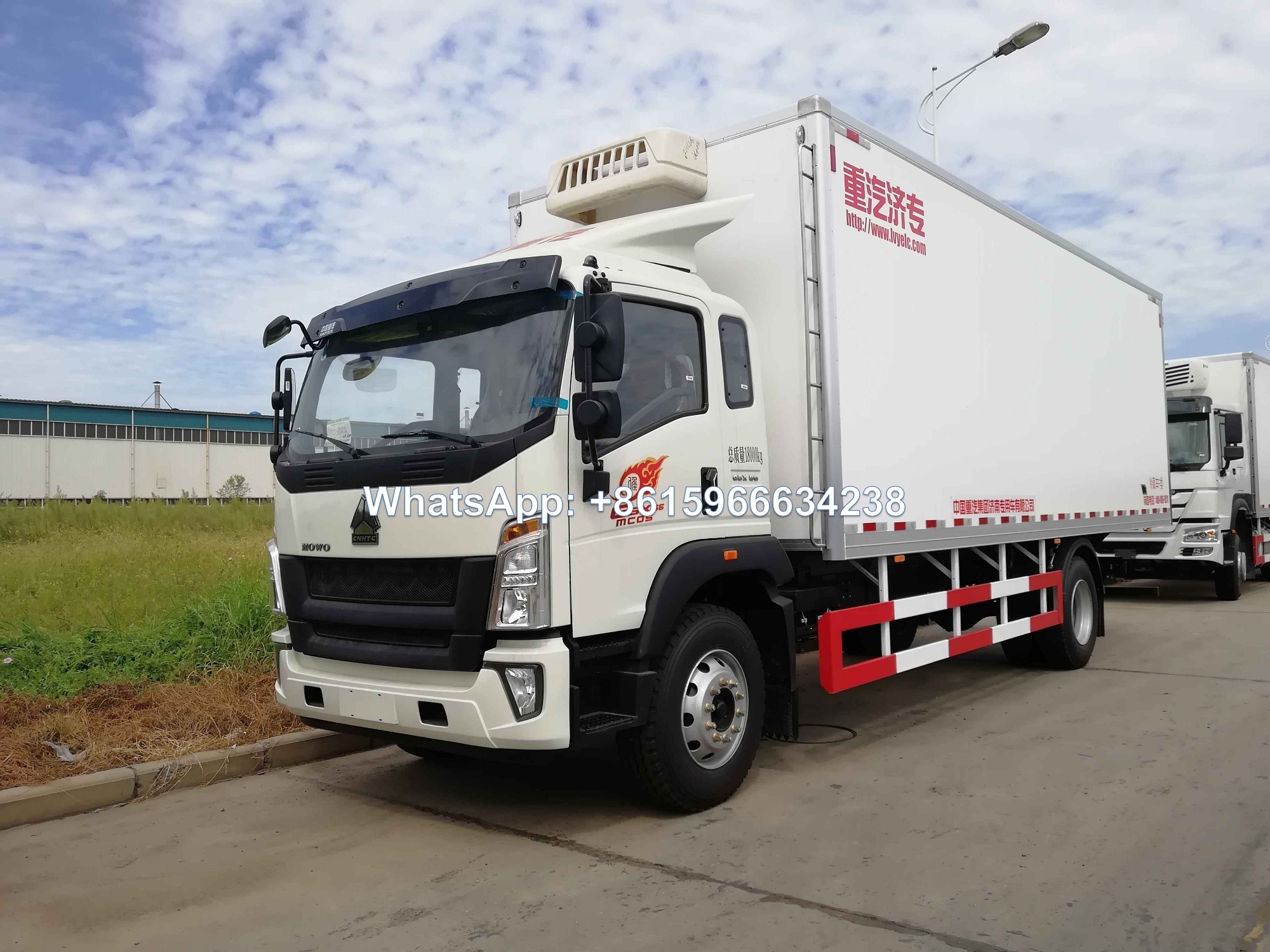

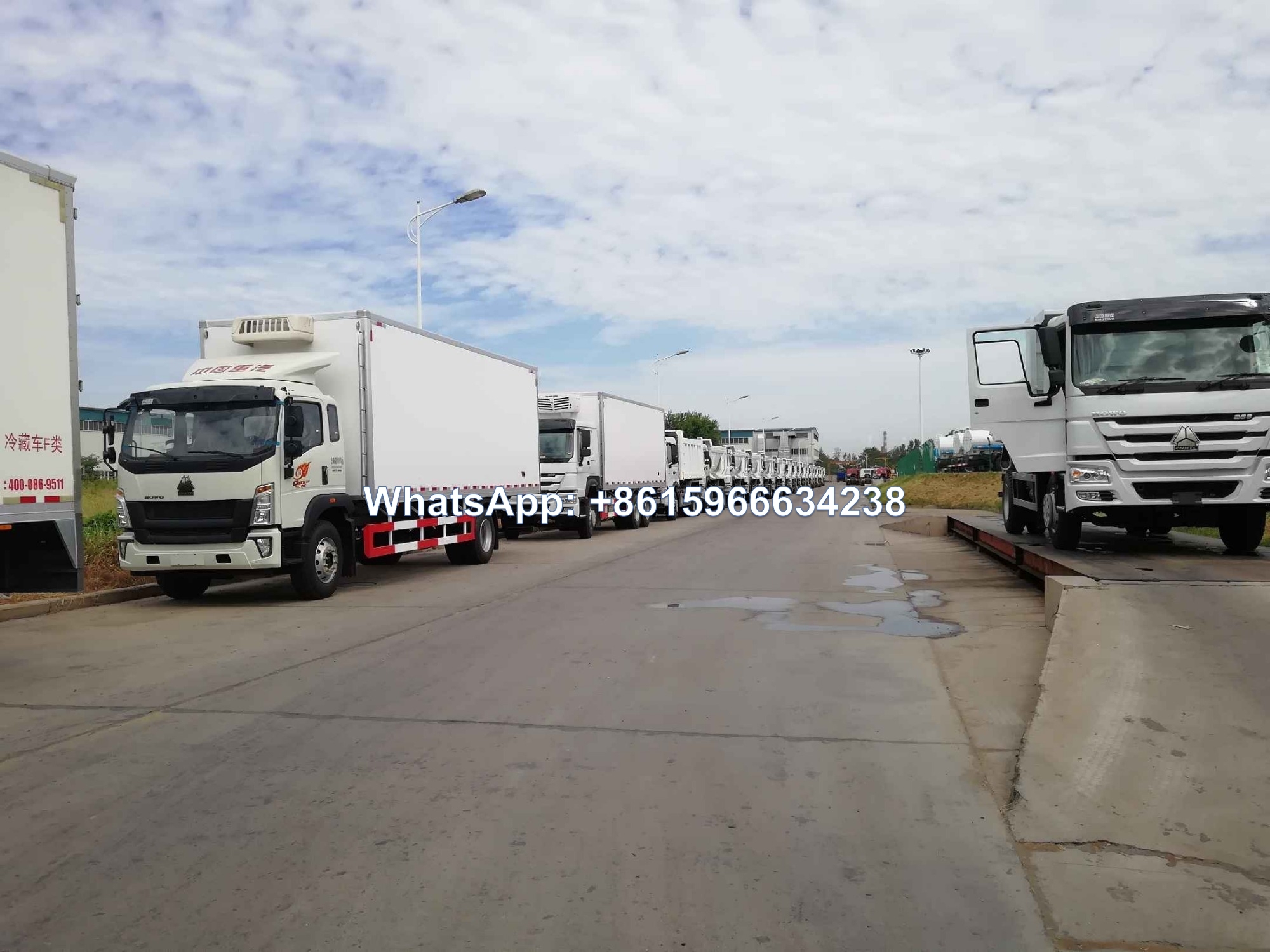

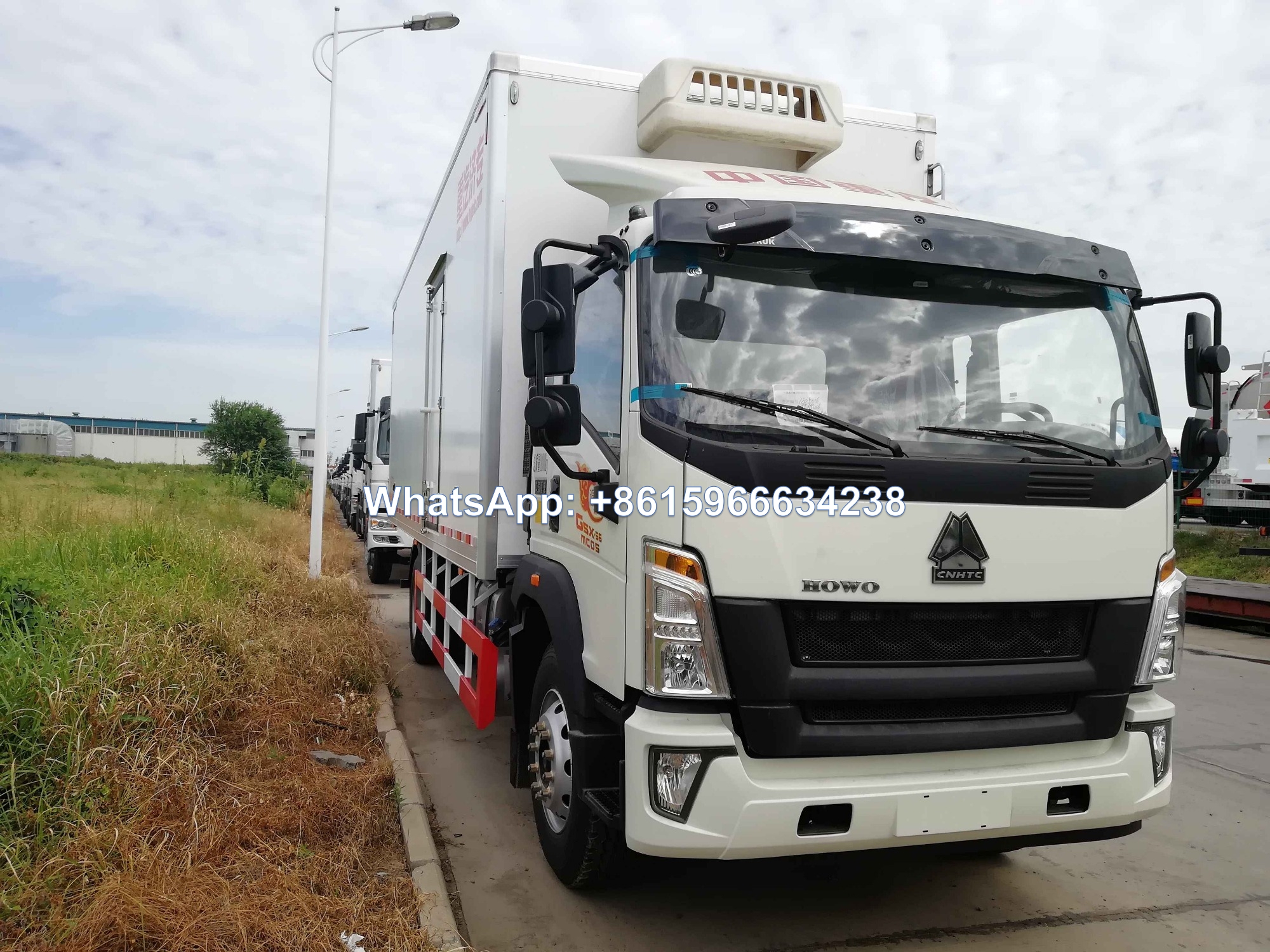

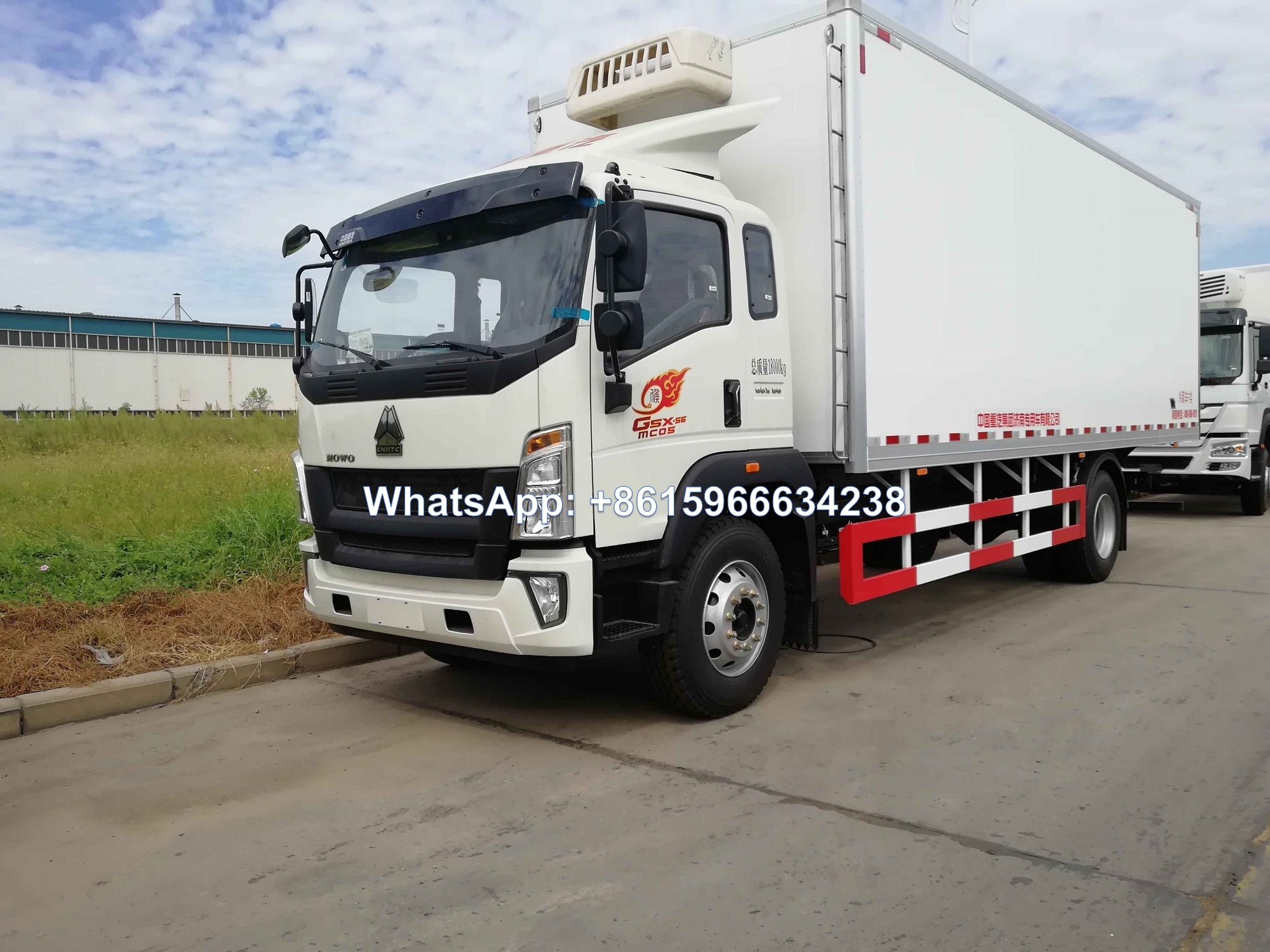

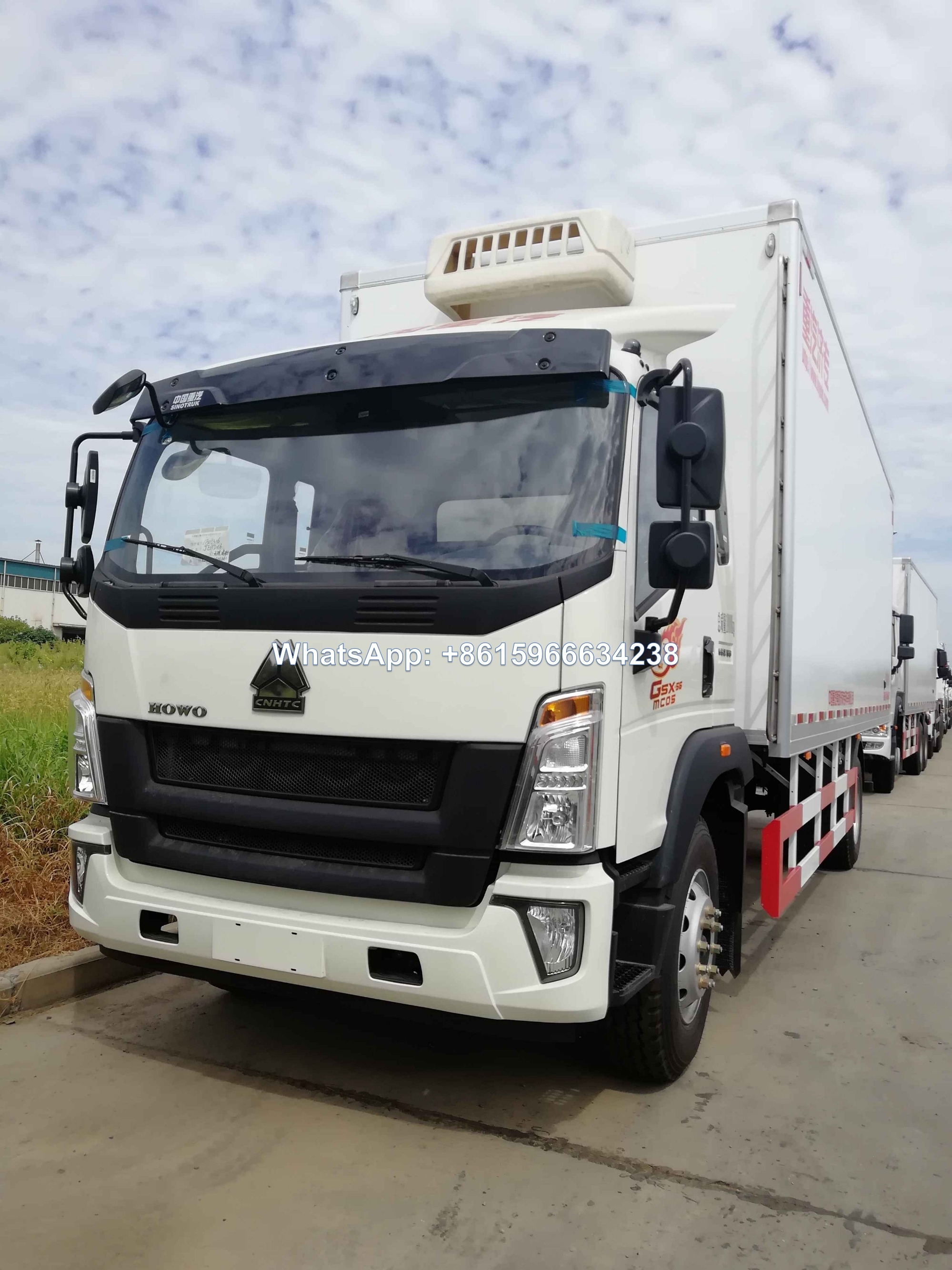

Specification of 15ton howo 160hp 4*2 refrigerated truck |
||
Drive Model |
RHD or LHD |
|
Cab |
Inside & outside |
Wider comfortable 2080mm one and half cabin,with A/C |
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
9500*2600*3680 |
|
Wheel base (mm) |
5200 |
|
Axle load(front /rear)(ton) |
3.2/8.0 |
|
Suspension |
9/12+9B |
|
Fuel tank |
220L iron tank |
Max. driving speed(km/h) |
95 |
Engine
|
Model |
YC4E160-33 |
MAX Power(HP) |
160 |
|
Displacement(L) |
4.257 |
|
Maximum output power |
105kW |
|
Fuel |
Diesel |
|
Engine form |
Vertical, inline, water cooled, four stroke, direct injection |
|
Cylinder Number |
4 |
|
Engine net weight(kg) |
380 |
|
Cylinder x stroke(mm) |
110*112 |
|
Maximum torque(N.m) |
500 |
|
Rated speed(rpm) |
1600 |
|
Maximum torque speed(rpm) |
2800 |
|
Noise outside one meter(dB) |
99 |
|
Minimum fuel consumption at full load(g/kW.h) |
200 |
|
Emission standard |
Euro 3 |
|
Accessories |
Air dryer, engine noise reduction board, electric flameout |
Gearbox |
WLY6T51(110), 6 Forwarder |
Steering Gear |
power steering |
Tire |
8.25R20 , 6+1 Spare tire |
Clutch |
Clutch assist |
Brakes |
Spring brake,exhaust brake |

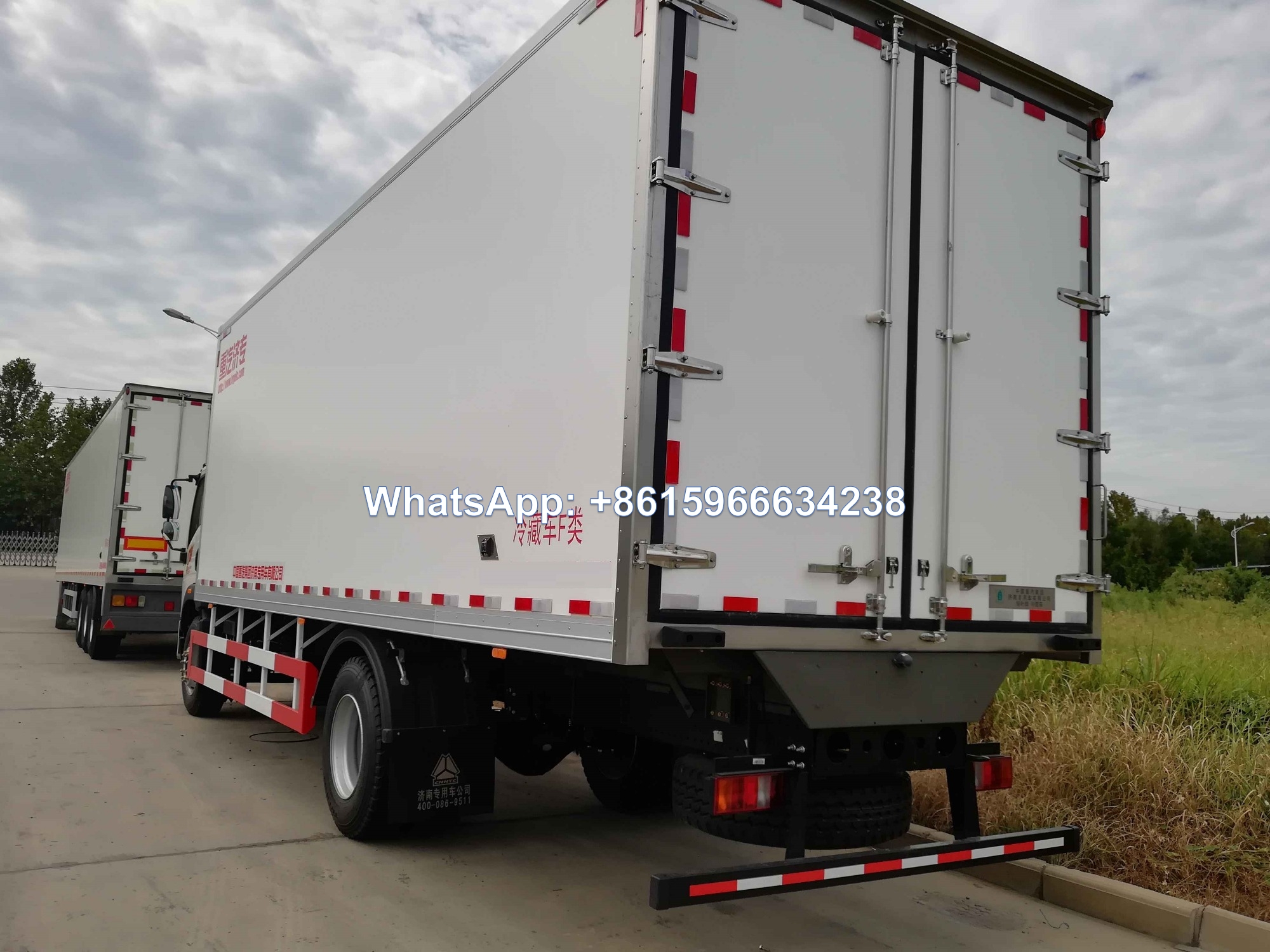

Van body |
|
Material of box |
Glass fiber reinforced plastics,Patterned aluminum floor |
Thermal insulation |
Polyurethane foam,8cm thickness |
Dimension |
6650*2200*2200mm |
Door |
Rear door open |
Refrigeration unit brand |
Dongin (Korea Brand) DT-150S |
Temperature |
-18℃-0℃ Adjustable |
